LX36125G
Product Description
LX (I-Line) Frame Style, Molded Case Circuit Breaker, 600 Amp Max Frame, Electronic Non-interchangeable Trip Unit, LSIG Trip Unit Functions, 125 Ampere at 40 Degree Celsius, 3 Pole, Interrupting Ratings: 100 Kiloampere @ 240 VAC, 65 Kiloampere @ 480 VAC, 35 Kiloampere @ 600 VAC, with ARP050 Rating Plug Installed Standard, Load End Terminals Standard

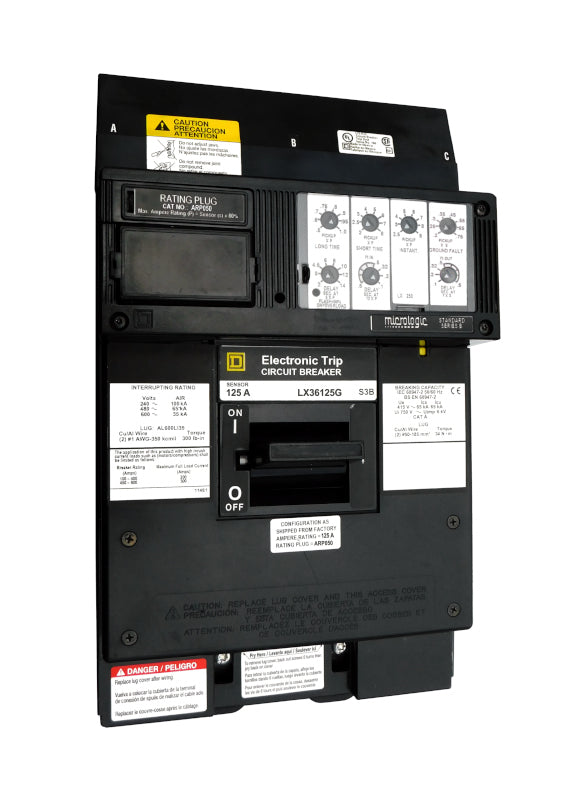

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Square-D |
|---|---|
| Warranty | One Year |
| Connection | Plug In |
| Frame Type | L |
| Amperage | 125 |
| Poles | 3 |
| Voltage Max | 600 |
| Interrupting Capacity Rating | 100 Kiloampere @ 240 VAC, 65 Kiloampere @ 480 VAC, 35 Kiloampere @ 600 VAC |
| Standard Lug Type | Load End |
New Surplus
Certified Reconditioned
