Product Description
Specs are as follows:

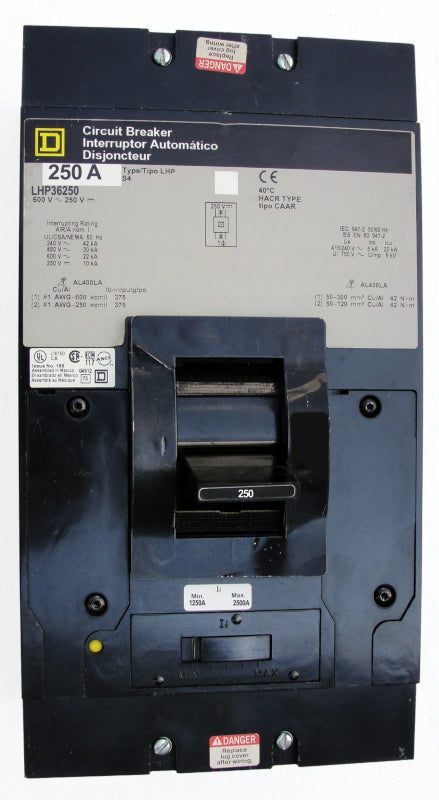

LHP Frame Style, Molded Case Circuit Breaker, Thermal Magnetic Non-interchangeable Trip Unit, 250 Ampere at 40 Degree Celsius, 3 Pole, Interrupting Ratings: 65 Kiloampere @ 240 VAC, 35 Kiloampere @ 480 VAC, 35 Kiloampere @ 600 VAC, Panel Mounted, Load End Terminals Only
This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Square-D |
|---|---|
| Warranty | One Year |
| Connection | Panel Mounted |
| Frame Type | L |
| Amperage | 250 |
| Poles | 3 |
| Voltage Max | 600 VAC |
| Interrupting Capacity Rating | 65 Kiloampere @ 240 VAC, 35 Kiloampere @ 480 VAC, 35 Kiloampere @ 600 VAC |
| Trip Setting | 1250-2500 |
| Standard Lug Type | Load End Only |
