LG3600WC04S01
Product Description
LG Frame Style, Molded Case Generator Circuit Breaker, Electronic Interchangeable Trip Unit, 500-2500 Trip Range, 600 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 18 Kiloampere @ 240VAC, 14 Kiloampere @ 480VAC, 10 Kiloampere @ 600VAC, C04 Option Includes: [1A-1B MK-BK Same Side with Right Pigtail, S01 Options Includes [12-24 VAC/VDC Same Side with Left Pigtail, Line and Load End Terminals Standard

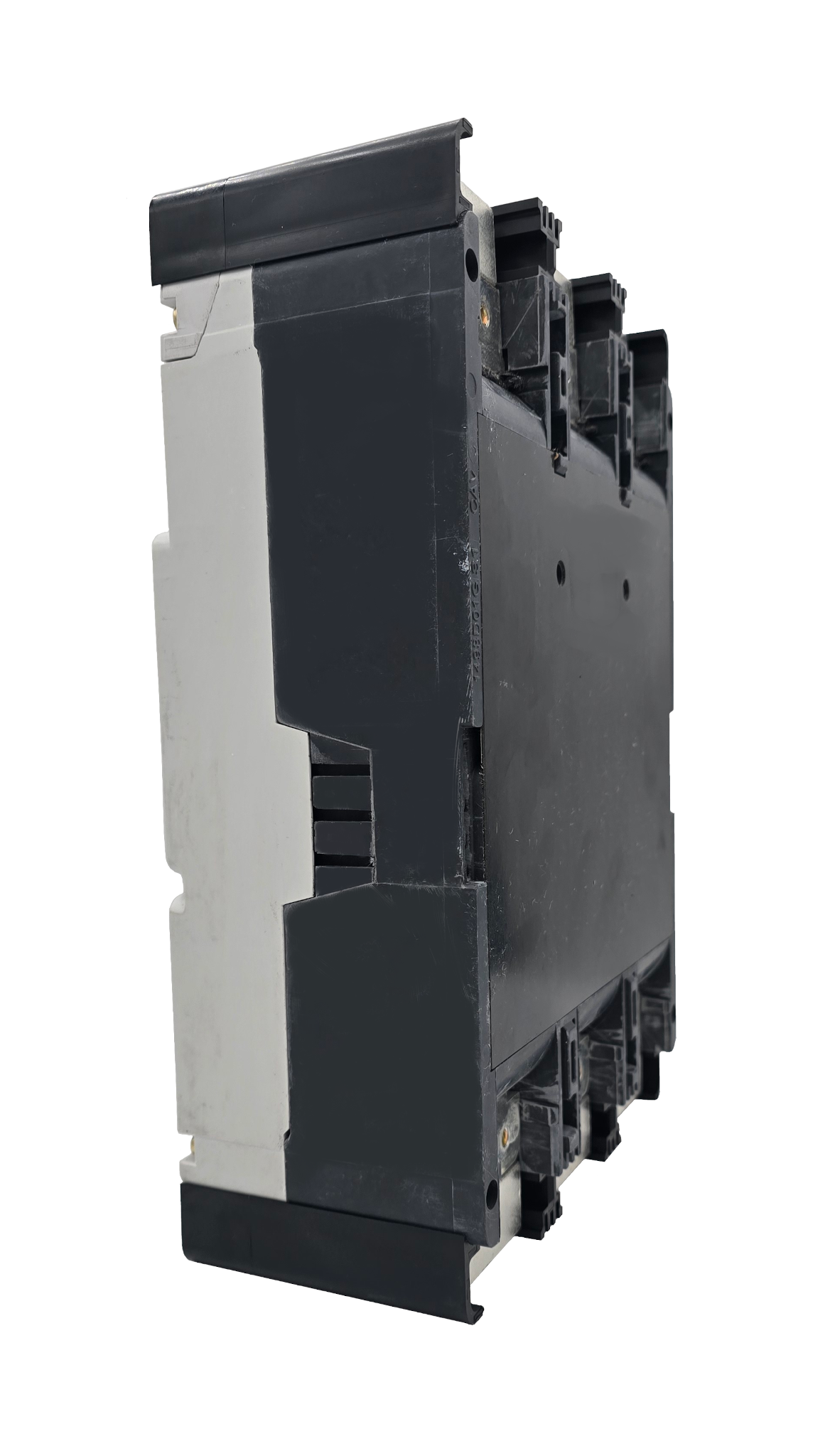

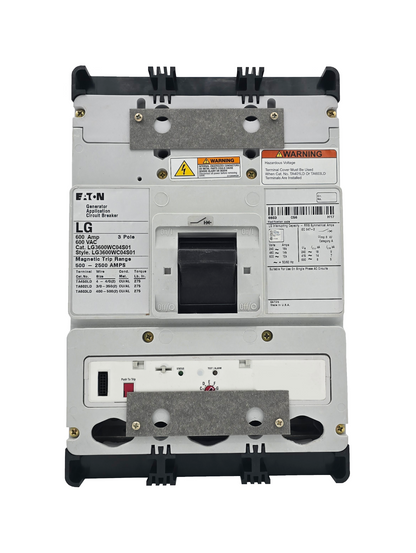

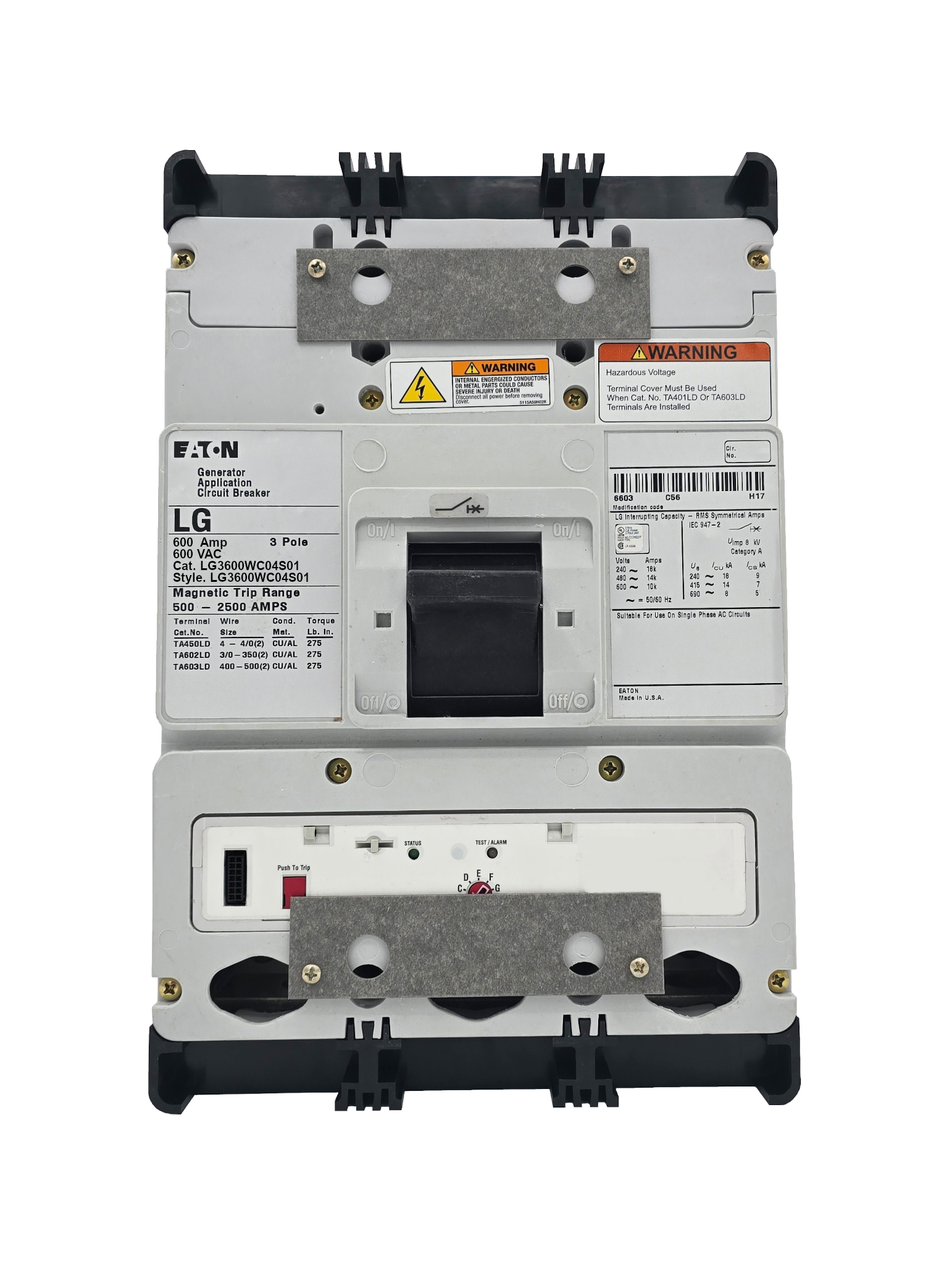

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Eaton / Cutler Hammer |
|---|---|
| Warranty | One Year |
| Configuration | C04 Option Includes: [1A-1B MK-BK Same Side with Right Pigtail, S01 Options Includes [12-24 VAC/VDC Same Side with Left Pigtail |
| Connection | Bolt On |
| Frame Type | L |
| Amperage | 600 |
| Poles | 3 |
| Voltage Max | 600 |
| Interrupting Capacity Rating | 18 Kiloampere @ 240VAC, 14 Kiloampere @ 480VAC, 10 Kiloampere @ 600VAC |
| Trip Setting | 500-2500 |
| Standard Lug Type | Line and Load |
Certified Reconditioned
Qty in Stock: 1
