Product Description
Specs are as follows:
LG Frame Style, Molded Case Generator Circuit Breaker, Electronic Interchangeable Trip Unit, 500-2500 Trip Range, 450 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 18 Kiloampere @ 240VAC, 14 Kiloampere @ 480VAC, 10 Kiloampere @ 600VAC, S02 Option Includes: [12-24 VAC or VDC Shunt Trip Installed, Left Pole Mounted, Exiting Rear], With Terminals Standard

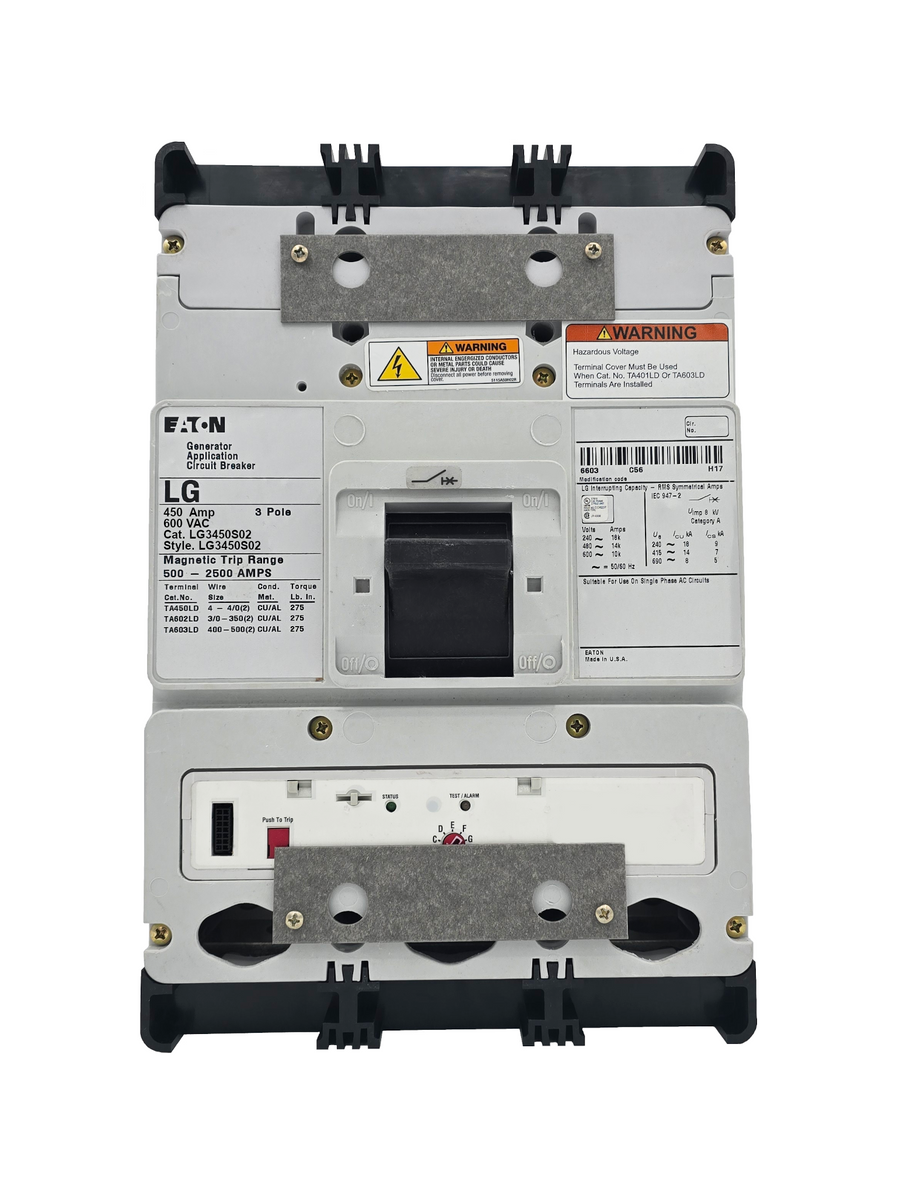

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
Manufacturer | Eaton / Cutler Hammer |
---|---|
Warranty | One Year |
Configuration | S02 Option Includes: [12-24 VAC or VDC Shunt Trip Installed, Left Pole Mounted, Exiting Rear] |
Connection | Bolt On |
Frame Type | L |
Amperage | 450 |
Poles | 3 |
Voltage Max | 600 |
Interrupting Capacity Rating | 18 Kiloampere @ 240VAC, 14 Kiloampere @ 480VAC, 10 Kiloampere @ 600VAC |
Trip Setting | 500-2500 |
Standard Lug Type | With Terminals Standard |
