ATTENTION: This unit requires a rating plug in order to function. Please choose and add a rating plug to your cart before placing your order to ensure you receive a complete, working unit.
L Frame Style Electronic Digitrip RMS
Look under Parts & Accessories or follow the links below to order accessories used to create additional configurations for this unit.
1. Auxiliary Switches
2. Electronic Trip Units
3. Rating Plugs
4. Shunt Trips
5. Terminal/Lug Kits
6. Trip Units
7. Undervoltage Releases (UVRs)

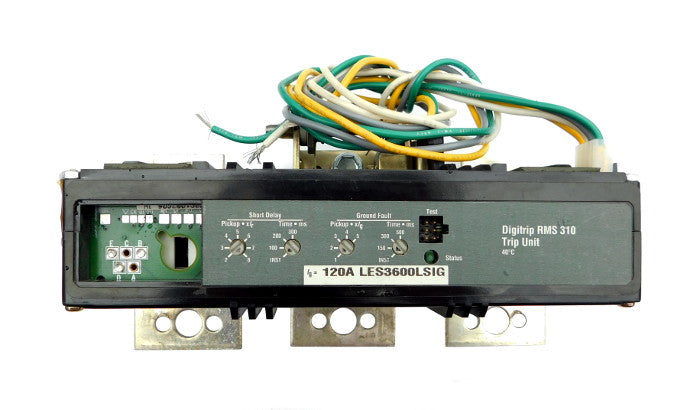

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specs are as follows:Trip Unit, L Frame Style, Electronic Digitrip RMS 310, 600 Ampere Max at 40 Degree Celsius, 3 Pole, Electronic Trip Adjustment at 2-8 Times Continuous Ampere Rating, For Use in Molded Case Circuit Breakers With Optional Interchangeable Trip Units
L – Adjustable Long Delay Pickup (By Adjustable Rating Plug)
S – Adjustable Short Delay Pickup with Fixed Short Delay Time (I2t Response) or Adjustable Short Time (Flat Response)
G – Adjustable Ground Fault Pickup with Adjustable Ground Fault Delay (Flat Response)
|Manufacturer||Eaton / Cutler Hammer|
|Trip Setting||Adjustable 2-8 Times Continuous Ampere Rating|
