E2L Frame Style Trip Unit, Mining Circuit Breaker Accessory
Follow the links below to order accessories used to create additional configurations for this unit.
1. Auxiliary Switches:
A1X4PK
A2X4PK
2. Shunt Trips:
SNT4LP05K
SNT4LP11K
SNT4LP26K
3. Undervoltage Releases (UVRs):
UVH4LP08K
UVH4LP11K
UVH4LP26K
4. Terminal/Lug Kits:
3TA401LDK

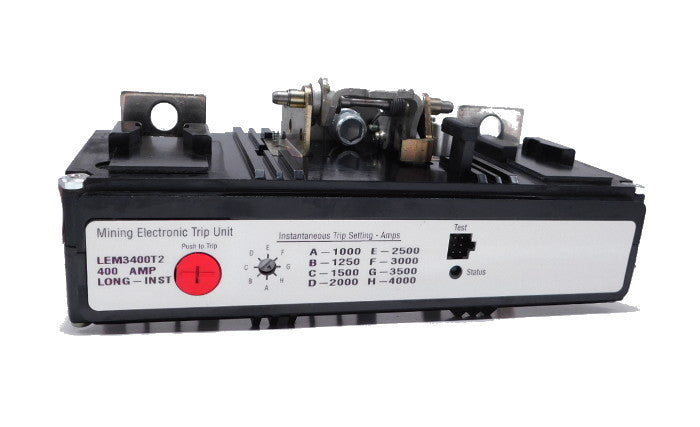

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Product Description
Specs are as follows:
Trip Unit, L Frame Style, Electronic Trip Unit, Instantaneous Only, 600 Ampere at 40 Degree Celsius, 3 Pole, 2500-5000 Amp Trip Rating, For Use in Molded Case Circuit Breakers With Optional Interchangeable Trip Units.
Specifications
| Manufacturer | Eaton / Cutler Hammer |
|---|---|
| Warranty | One Year |
| Connection | Bolt In |
| Frame Type | L |
| Amperage | 600 |
| Poles | 3 |
| Trip Setting | 2500-5000 |
