Specs are as follows:

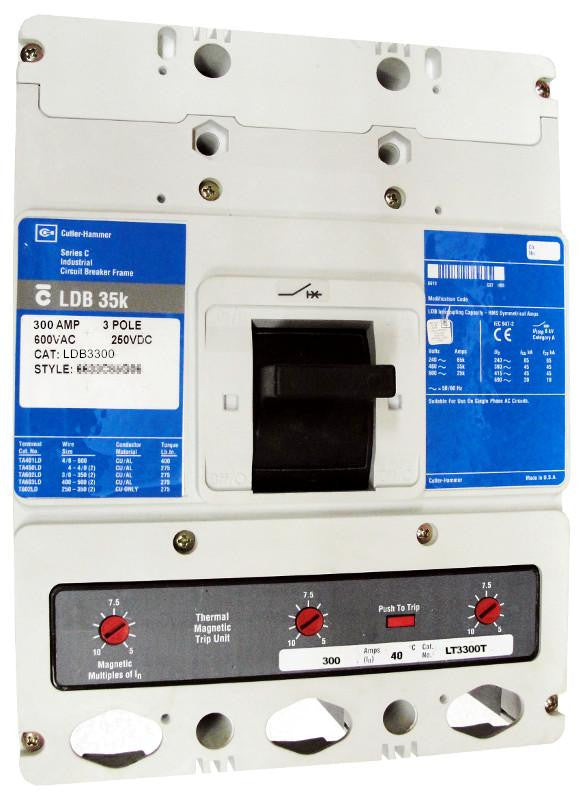

LDB Frame Style, Molded Case Circuit Breaker, Thermal Magnetic Non-Interchangeable Trip Unit, Suitable for Reverse Feed, 300 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 22 Kiloampere @ 250VDC
Follow the links below to order accessories used to create additional configurations for this unit.
1. Optional Auxiliary Switches:
2. Optional Shunt Trips:
3. Optional Undervoltage Releases (UVRs):
4. Optional Terminal/Lug Kits:
Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
|Manufacturer||Eaton / Cutler Hammer|
|Interrupting Capacity Rating||65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 22 Kiloampere @ 250VDC|
|Trip Setting||Adjustable 5-10 Times Continuous Ampere Rating|
|Standard Lug Type||Aluminum Line and Load End Terminals Standard|
