LD Frame Style Molded Case Circuit Breaker
Look under Parts & Accessories or follow the links below to order accessories used to create additional configurations for this unit.
1. Auxiliary Switch
2. Shunt Trips
3. Terminal/Lug Kits
4. Terminal/Lugs Special Application
5. Trip Unit
6. Undervoltage Releases (UVR)

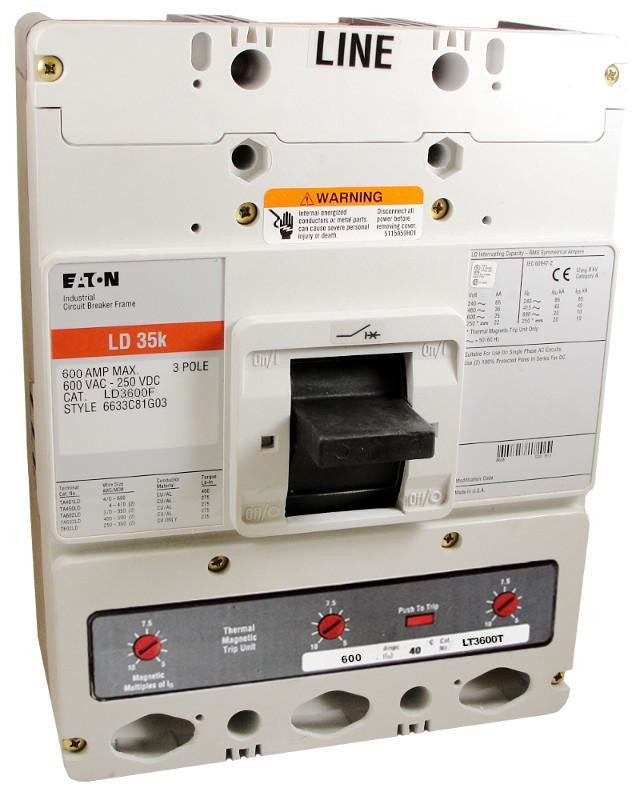

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Product Description
Specs are as follows:
LD Frame Style, Molded Case Circuit Breaker, Thermal Magnetic Interchangeable Trip Unit, 600 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 22 Kiloampere @ 250VDC, A06 Option Includes: [1-A(Open) 1-B(Closed) Auxiliary Installed, Right Pole Mounted, Exiting Rear], U18 Option Includes: [110-127VAC UVR Installed, Left Pole Mounted, Exiting Rear]
Specifications
Manufacturer | Eaton / Cutler Hammer |
---|---|
Warranty | One Year |
Configuration | A06 Option Includes: [1-A(Open) 1-B(Closed) Auxiliary Installed, Right Pole Mounted, Exiting Rear], U18 Option Includes: [110-127VAC UVR Installed, Left Pole Mounted, Exiting Rear] |
Connection | Bolt On |
Frame Type | L |
Amperage | 600 |
Poles | 3 |
Voltage Max | 600 |
Interrupting Capacity Rating | 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 22 Kiloampere @ 250VDC |
Trip Setting | Adjustable 5-10 Times Continuous Ampere Rating |
Standard Lug Type | Aluminum Line and Load End Terminals Standard |
