LD3600A02S21

New Surplus

Qty in Stock: 1

$3,750.00

Certified Reconditioned

Qty in Stock: 1

$2,250.00

LD Frame Style Molded Case Circuit Breaker

Look under Parts & Accessories or follow the links below to order accessories used to create additional configurations for this unit.

1. Auxiliary Switch
2. Shunt Trip
3. Terminal/Lug Kits
4. Terminal/Lugs Special Application
5. Trip Unit
6. Undervoltage Releases (UVRs)

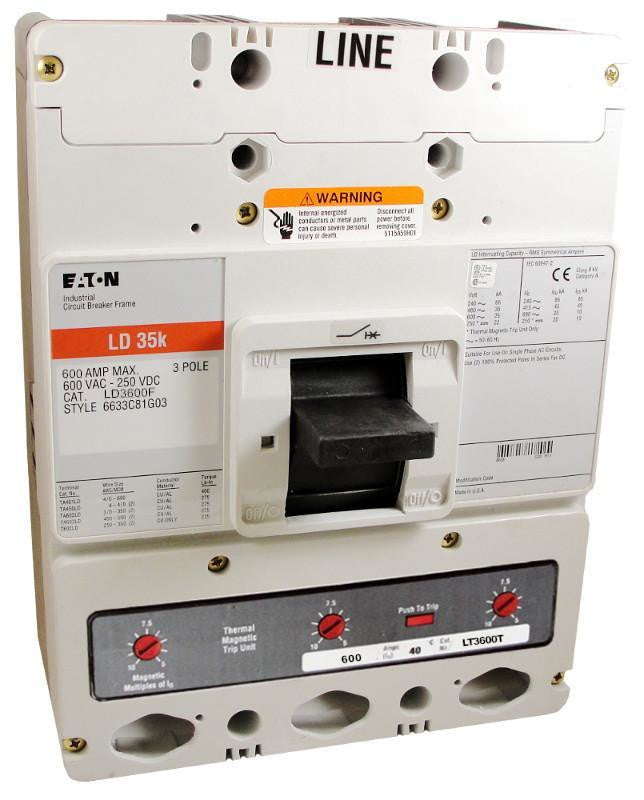

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.

Product Description

Specs are as follows:

LD Frame Style, Molded Case Circuit Breaker, Thermal Magnetic Interchangeable Trip Unit, 600 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 22 Kiloampere @ 250VDC, A02 Option Includes: [1-A(Open) 1-B(Closed) Auxiliary Switch Installed, Left Pole Mounted, Exiting Rear], S21 Option Includes: [12-24 VAC or VDC Shunt Trip Installed, Right Pole Mounted, Exiting Same Side]

Specifications

Manufacturer Eaton / Cutler Hammer
Warranty One Year
Configuration

A02 Option Includes: [1-A(Open) 1-B(Closed) Auxiliary Switch Installed, Left Pole Mounted, Exiting Rear]

S21 Option Includes: [12-24 VAC or VDC Shunt Trip Installed, Right Pole Mounted, Exiting Same Side]

Connection Bolt On
Frame Type L
Amperage 600
Poles 3
Voltage Max 600
Interrupting Capacity Rating 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 22 Kiloampere @ 250VDC
Trip Setting Adjustable 5-10 Times Continuous Ampere Rating
Standard Lug Type Aluminum Line and Load End Terminals Standard
