Product Description
Specs are as follows:
LCL Frame Style, Molded Case Circuit Breaker, Thermal Magnetic Non-interchangeable Trip Unit, 600 Ampere at 40 Degree Celsius, 3 Pole, Interrupting Ratings: 100 Kiloampere @ 240 VAC, 65 Kiloampere @ 480 VAC, 35 Kiloampere @ 600 VAC, Line and Load End Terminals Standard

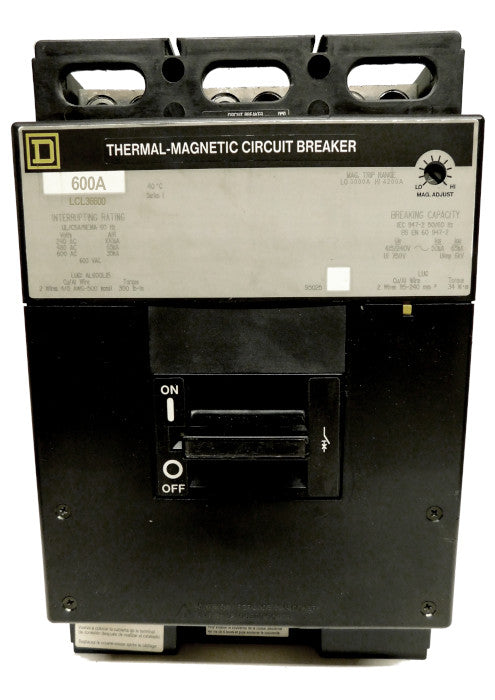

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Square-D |
|---|---|
| Warranty | One Year |
| Connection | Plug-In |
| Frame Type | L |
| Amperage | 600 |
| Poles | 3 |
| Voltage Max | 600 VAC |
| Interrupting Capacity Rating | 100 Kiloampere @ 240 VAC, 65 Kiloampere @ 480 VAC, 35 Kiloampere @ 600 VAC |
| Trip Setting | 3000-4200 |
| Standard Lug Type | Line and Load End |
