LCGA3200 (LCGA3400F w/ 200 Amp Rating Plug)

Call for Price

New Surplus

Click for Info
$6,625.00

Certified Reconditioned

Click for Info
$2,595.00
Delivery
Free with $500 Order
Get it by

Product Description

Specs are as follows:

LCGA Frame Style, Molded Case Circuit Breaker, LSIG Function Non-Interchangeable Trip Unit, 200 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 42 Kiloampere @ 240VAC, 30 Kiloampere @ 480VAC, 22 Kiloampere @ 600VAC, 400 Amp Max Frame, with 200 Amp Rating Plug Installed, Without Terminals Standard

L – Adjustable Long Delay Pickup (By Adjustable Rating Plug)

S – Adjustable Short Delay Pickup with Fixed Short Delay Time (I2t Response) or Adjustable Short Time (Flat Response)

I – Adjustable Instantaneous Pickup by Setting Short Time Delay Time to Instantaneous

G – Adjustable Ground Fault Pickup with Adjustable Ground Fault Delay (Flat Response)

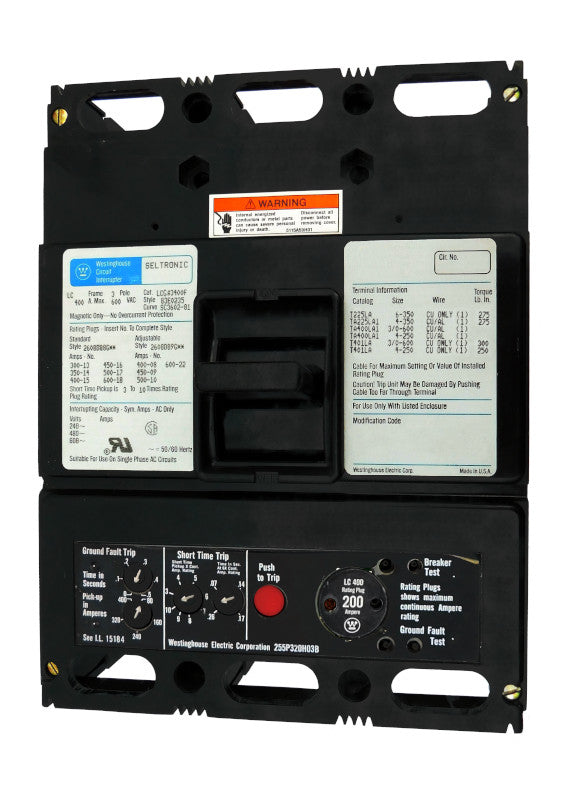

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.

Specifications


Manufacturer Westinghouse
Warranty One Year
Configuration 4LC200
Connection Bolt On
Frame Type L
Amperage 200
Poles 3
Voltage Max 600
Interrupting Capacity Rating 42 Kiloampere @ 240VAC, 30 Kiloampere @ 480VAC, 22 Kiloampere @ 600VAC
Trip Setting 600-2000
Standard Lug Type Without Terminals Standard
