Product Description

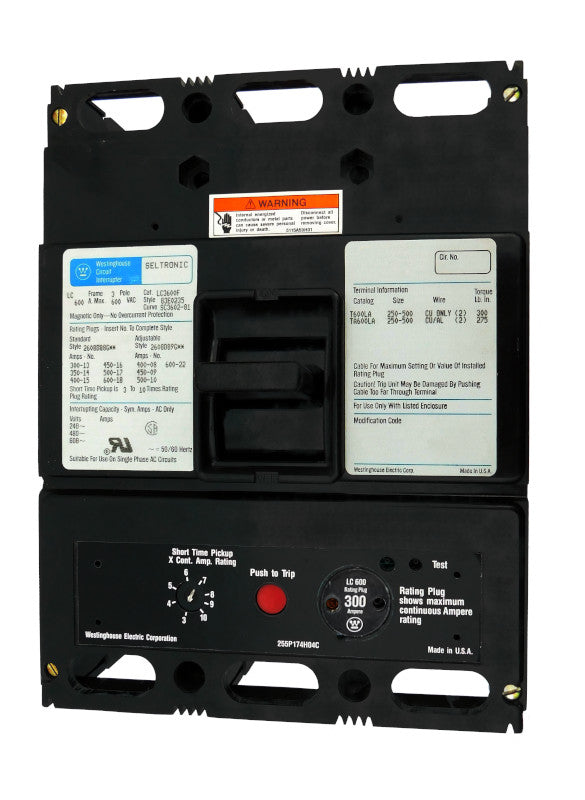

LC Frame Style, Molded Case Circuit Breaker, LS Function Non-Interchangeable Trip Unit, 300 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 42 Kiloampere @ 240VAC, 30 Kiloampere @ 480VAC, 22 Kiloampere @ 600VAC, 600 Amp Max Frame, with 300 Amp Rating Plug Installed, Without Terminals Standard
L – Adjustable Long Delay Pickup (By Adjustable Rating Plug)
S – Adjustable Short Delay Pickup with Fixed Short Delay Time (I2t Response) or Adjustable Short Time (Flat Response)
Specifications
| Manufacturer | Westinghouse |
|---|---|
| Warranty | One Year |
| Configuration | 6LC300 |
| Connection | |
| Frame Type | L |
| Amperage | 300 |
| Poles | 3 |
| Voltage Max | 600 |
| Interrupting Capacity Rating | 42 Kiloampere @ 240VAC, 30 Kiloampere @ 480VAC, 22 Kiloampere @ 600VAC |
| Trip Setting | 900-3000 |
| Standard Lug Type | Without Terminals Standard |
