LC3300 (LC3400F w/300 Amp Rating Plug)
Specs are as follows:
LC Frame Style, Molded Case Circuit Breaker, LS Function Non-Interchangeable Trip Unit, 300 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 42 Kiloampere @ 240VAC, 30 Kiloampere @ 480VAC, 22 Kiloampere @ 600VAC, 400 Amp Max Frame, with 300 Amp Rating Plug Installed, Without Terminals Standard
L – Adjustable Long Delay Pickup (By Adjustable Rating Plug)
S – Adjustable Short Delay Pickup with Fixed Short Delay Time (I2t Response) or Adjustable Short Time (Flat Response)

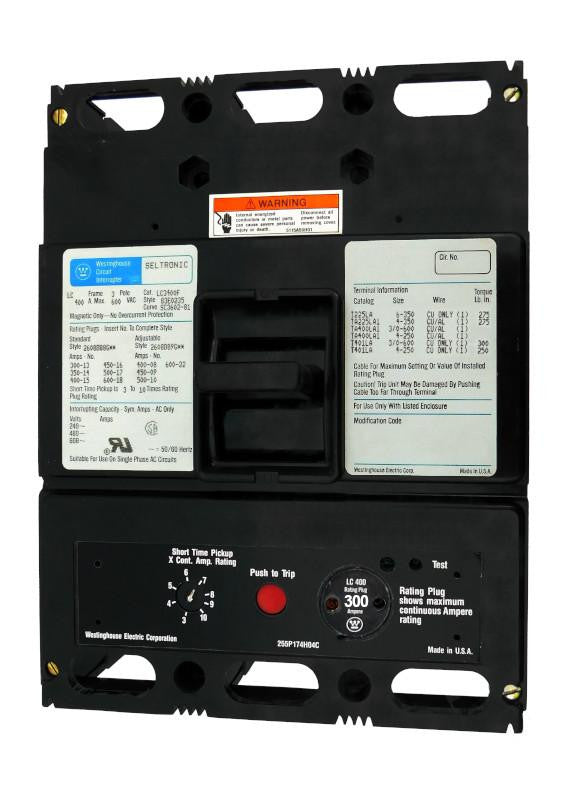

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
|Interrupting Capacity Rating||42 Kiloampere @ 240VAC, 30 Kiloampere @ 480VAC, 22 Kiloampere @ 600VAC|
|Standard Lug Type||Without Terminals Standard|
