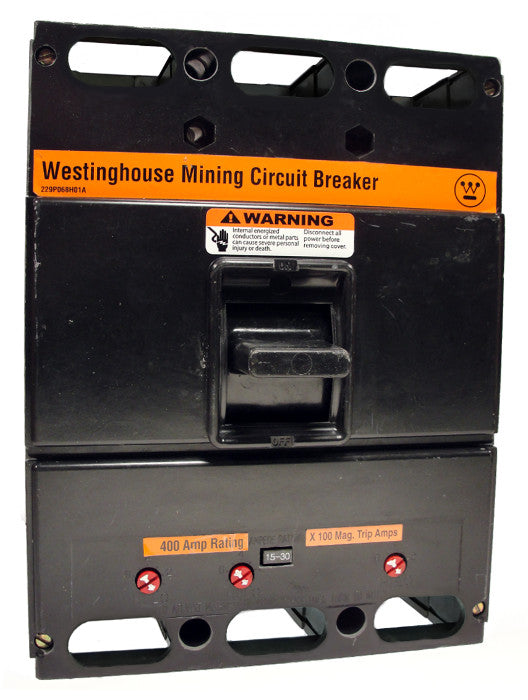

LAM3600 3000-6000 MAG-ONLY

Certified Reconditioned

Qty in Stock: 1

$1,650.00
Delivery
Free with $500 Order
Get it by

Product Description

Specs are as follows:

L Frame Style, Molded Case Mining Circuit Breaker, Interchangeable Magnetic Only Trip Unit, 600 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 42 Kiloampere @ 240VAC, 30 Kiloampere @ 480VAC, 22 Kiloampere @ 600VAC, No Lugs Standard.

Other prebuilt configurations available:

LAM3600 3000-6000 MAG-ONLY W/ UVR

Specifications


Manufacturer Westinghouse
Warranty One Year
Connection Bolt On
Frame Type L
Amperage 600
Poles 3
Voltage Max 600
Interrupting Capacity Rating 42 Kiloampere @ 240VAC, 30 Kiloampere @ 480VAC, 22 Kiloampere @ 600VAC
Trip Setting 3000-6000
Standard Lug Type No Lugs Standard
