Product Description
Specs are as follows:

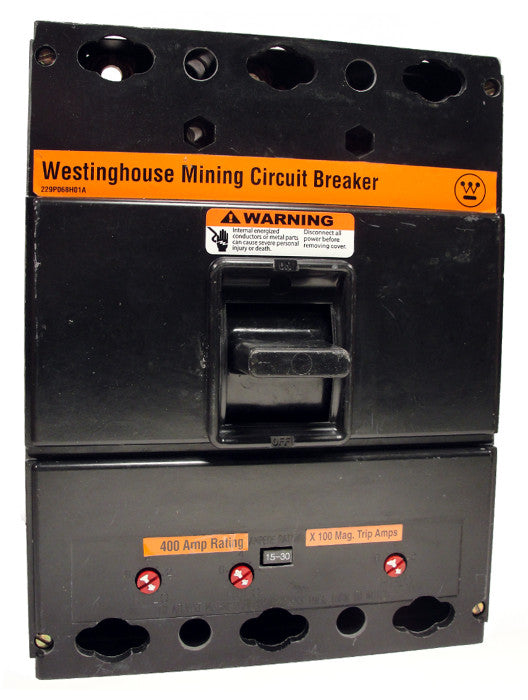

L Frame Style, Molded Case Mining Circuit Breaker, Interchangeable Thermal Magnetic Trip Unit, 400 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 42 Kiloampere @ 240VAC, 30 Kiloampere @ 480VAC, 22 Kiloampere @ 600VAC, Without Terminals Standard
This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
Manufacturer | Westinghouse |
---|---|
Warranty | One Year |
Connection | Bolt On |
Frame Type | L |
Amperage | 400 |
Poles | 3 |
Voltage Max | 600 |
Interrupting Capacity Rating | 42 Kiloampere @ 240VAC, 30 Kiloampere @ 480VAC, 22 Kiloampere @ 600VAC |
Trip Setting | 2000-4000 |
Standard Lug Type | Without Terminals Standard |
