Product Description
Specs are as follows:

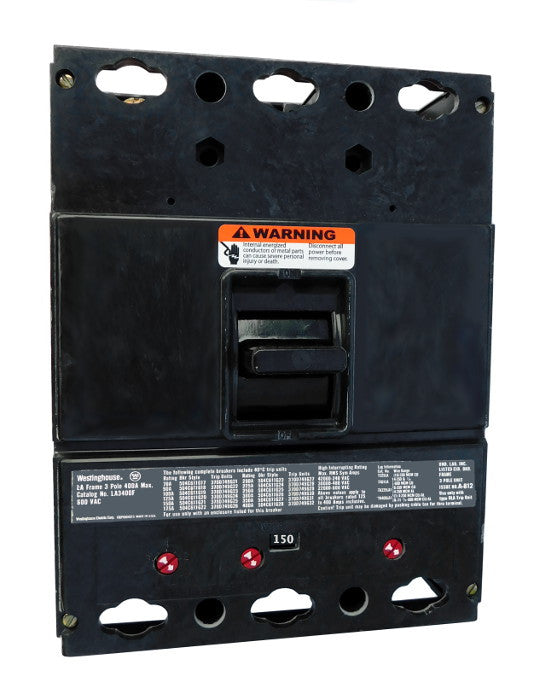

LA Frame Style, 400 Amp Max Frame, Molded Case Circuit Breaker, Thermal Magnetic Interchangeable Trip Unit, 150 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 50 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, Without Terminals Standard
This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Westinghouse |
|---|---|
| Warranty | One Year |
| Connection | |
| Frame Type | LA |
| Amperage | 150 |
| Poles | 3 |
| Voltage Max | 600 |
| Interrupting Capacity Rating | 50 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC |
| Trip Setting | 750-1500 |
| Standard Lug Type | Without Terminals Standard |
