Product Description
Specs are as follows:LA Frame Style, Tri-Pac, Molded-Case Circuit Breaker, Long Delay and Magnetic Non-Interchangeable Trip Unit, 100 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 200 Kiloampere @ 240VAC, 200 Kiloampere @ 480VAC, 200 Kiloampere @ 600VAC, Rear Connected, With Current Limiters 200LAP08 Installed, Without Terminals Standard

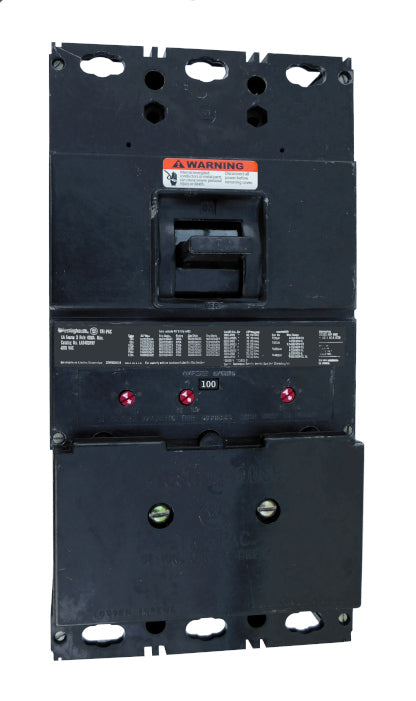

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Westinghouse |
|---|---|
| Warranty | One Year |
| Connection | |
| Frame Type | LA |
| Amperage | 100 |
| Poles | 3 |
| Voltage Max | 600 |
| Interrupting Capacity Rating | 200 Kiloampere @ 240VAC, 200 Kiloampere @ 480VAC, 200 Kiloampere @ 600VAC |
| Trip Setting | 500-1000 |
| Standard Lug Type | Without Terminals Standard |
