Product Description
Specs are as follows:

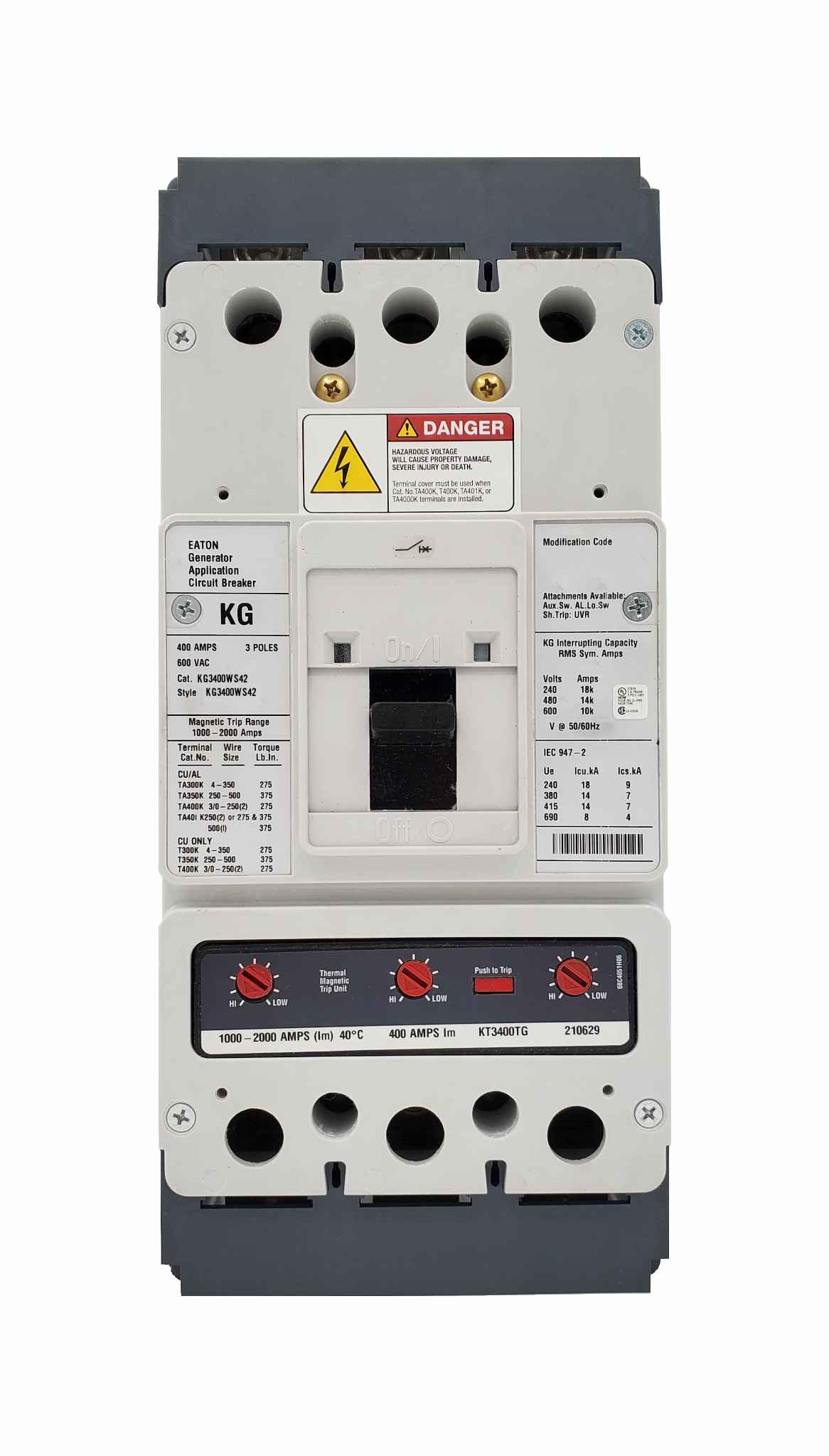

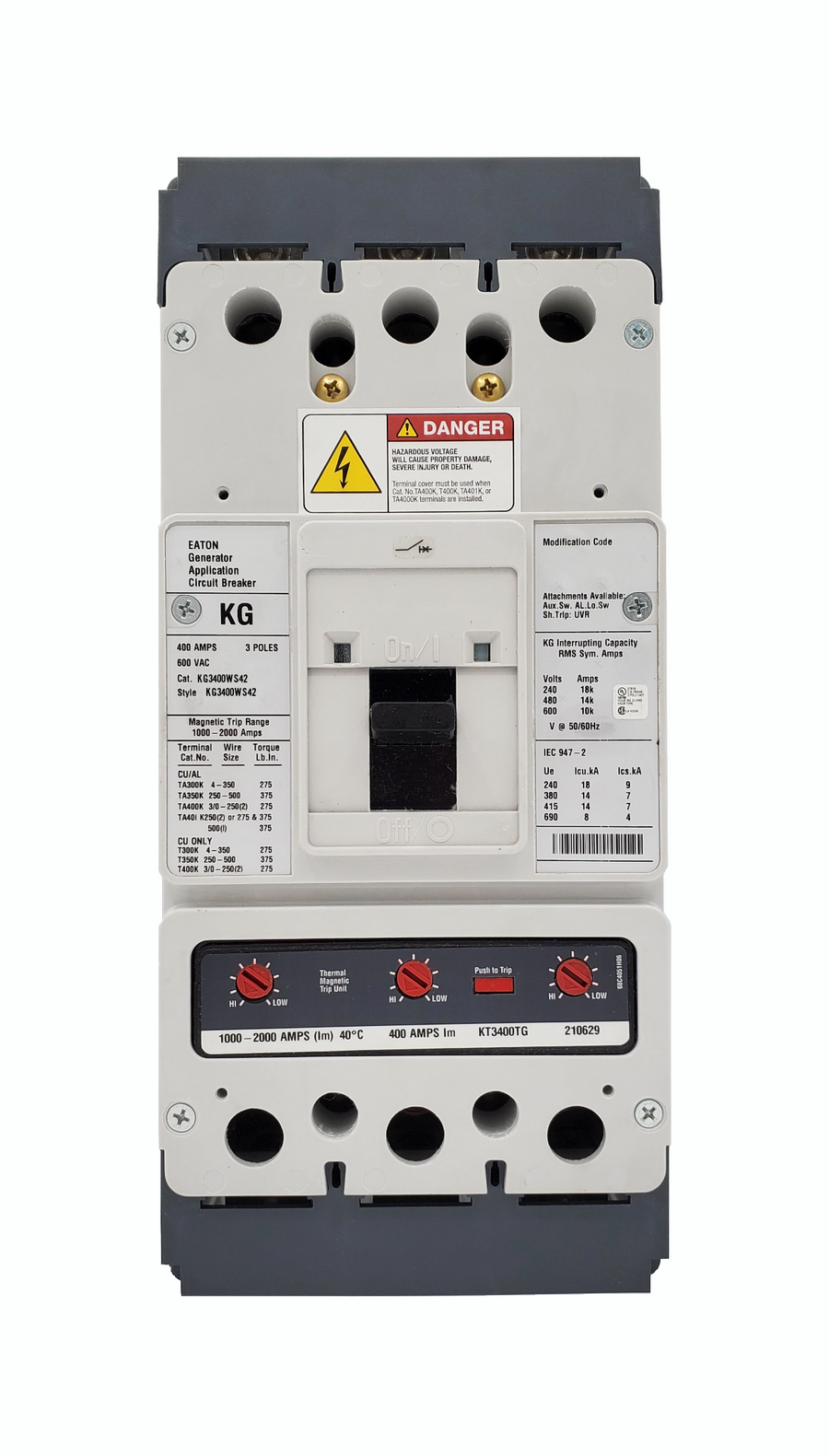

KG Frame Style, Molded Case Generator Circuit Breaker, Thermal Magnetic Interchangeable Trip Unit, 1000-2000 Trip Range, 400 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 18 Kiloampere @ 240VAC, 14 Kiloampere @ 480VAC, 10 Kiloampere @ 600VAC, Left Pole Mounted Shunt Trip 12-24V AC/DC, Without Terminals Standard.
This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Eaton / Cutler Hammer |
|---|---|
| Warranty | One Year |
| Configuration | Left Pole Mounted Shunt Trip 12-24V AC/DC |
| Connection | Bolt On |
| Frame Type | K |
| Amperage | 400 |
| Poles | 3 |
| Voltage Max | 600 |
| Interrupting Capacity Rating | 18 Kiloampere @ 240VAC, 14 Kiloampere @ 480VAC, 10 Kiloampere @ 600VAC |
| Trip Setting | 1000-2000 |
| Standard Lug Type | Without Terminals Standard |
