Product Description
Specs are as follows:
KG Frame Style, Molded Case Generator Circuit Breaker, Thermal Magnetic Interchangeable Trip Unit, 1000-2000 Trip Range, 400 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 18 Kiloampere @ 240VAC, 14 Kiloampere @ 480VAC, 10 Kiloampere @ 600VAC, S43 Option Includes: [12-24V DC Shunt Trip, Left Pole Mounted, Exiting Opposite Side], Line and Load End Terminals Standard

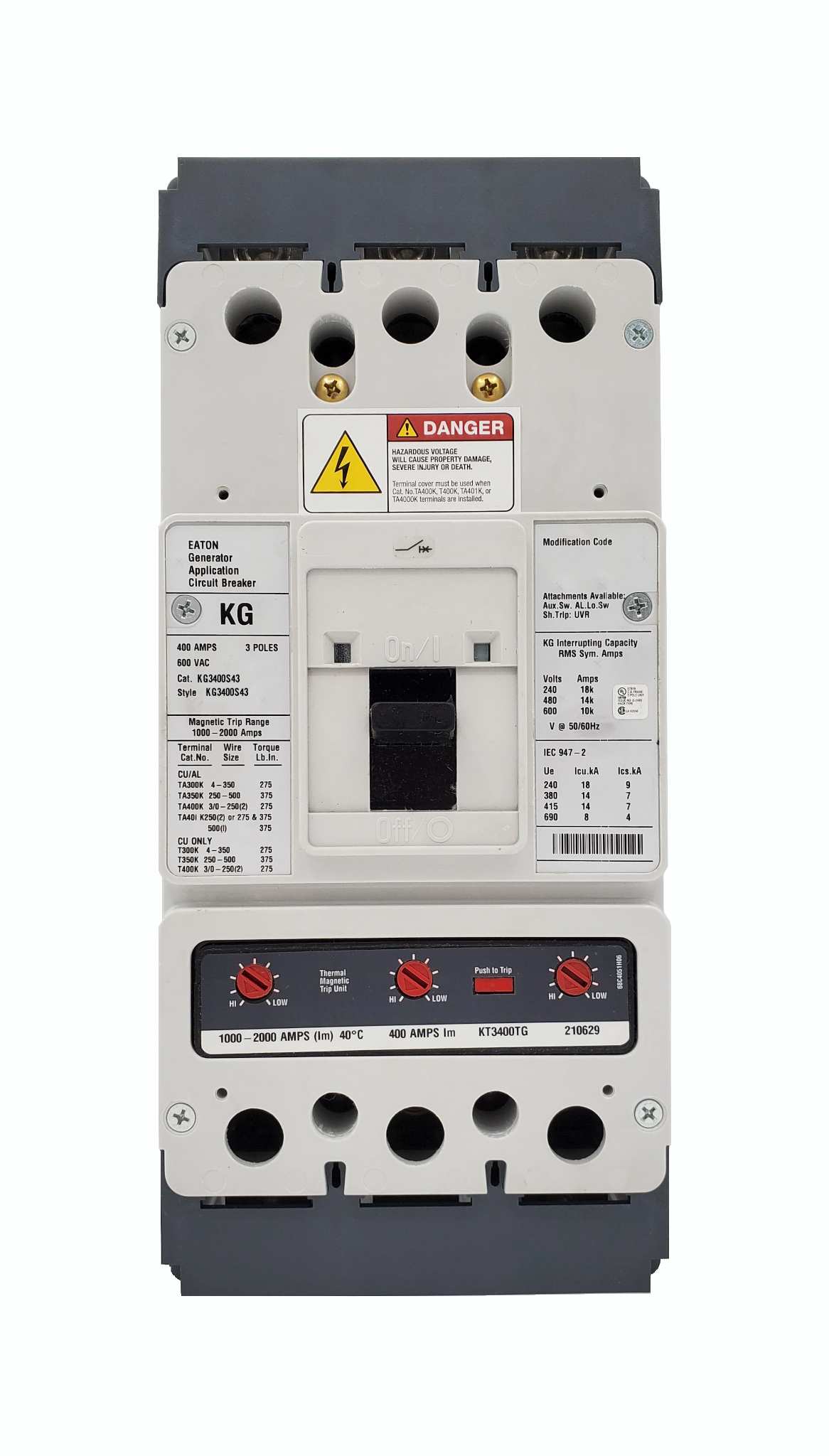

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
Manufacturer | Eaton / Cutler Hammer |
---|---|
Warranty | One Year |
Configuration | S43 Option Includes: [12-24V DC Shunt Trip, Left Pole Mounted, Exiting Opposite Side] |
Connection | Bolt On |
Frame Type | K |
Amperage | 400 |
Poles | 3 |
Voltage Max | 600 |
Interrupting Capacity Rating | 18 Kiloampere @ 240VAC, 14 Kiloampere @ 480VAC, 10 Kiloampere @ 600VAC |
Trip Setting | 1000-2000 |
Standard Lug Type | Line and Load |
