Specs are as follows:
KG Frame Style, Molded Case Generator Circuit Breaker, Thermal Magnetic Interchangeable Trip Unit, 500-1000 Trip Range, 300 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 18 Kiloampere @ 240VAC, 14 Kiloampere @ 480VAC, 10 Kiloampere @ 600VAC, S47 Option Includes: [12-24V DC Shunt Trip, Right Pole Mounted, Exiting Opposite Side], Line and Load End Terminals Standard.

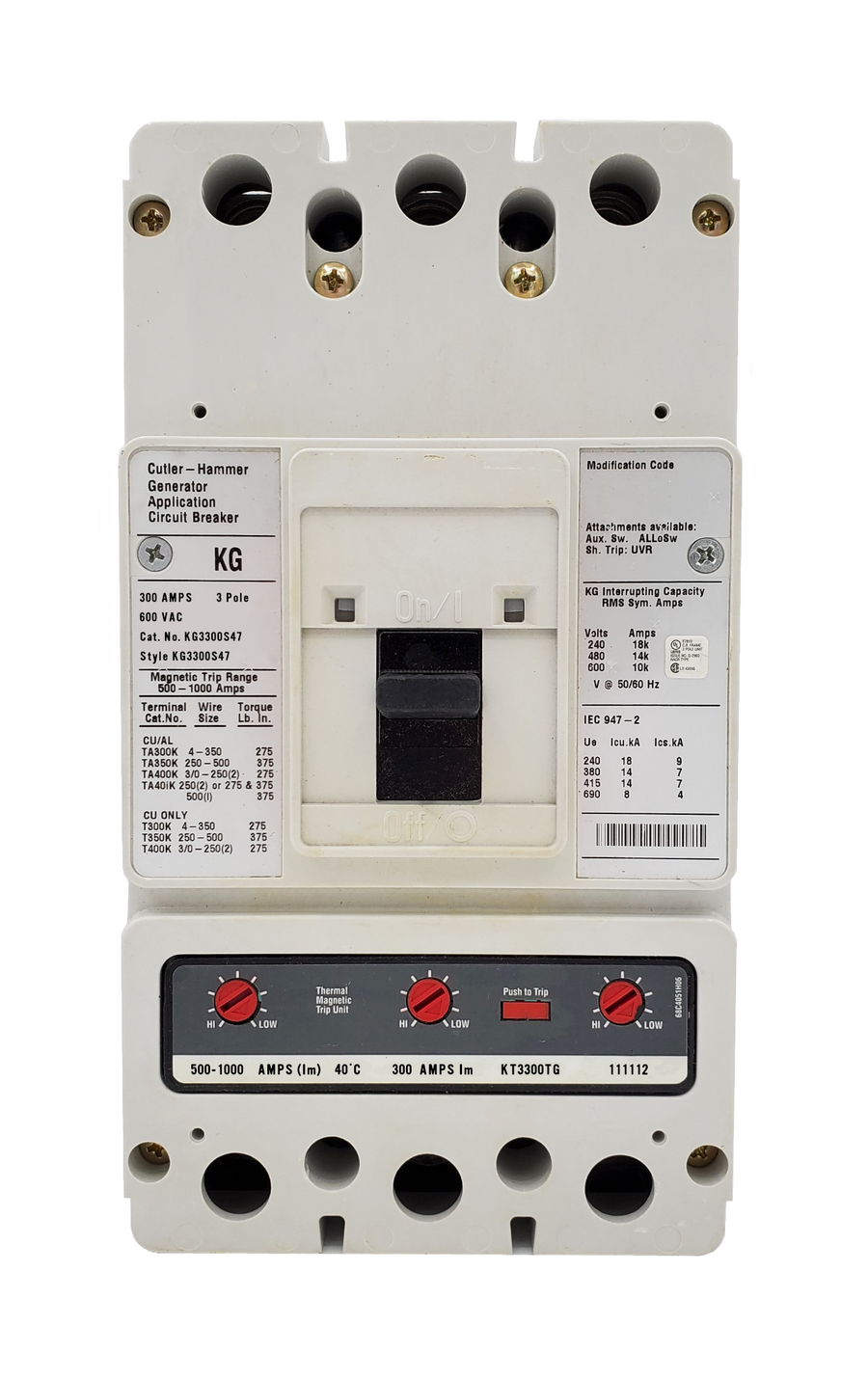

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
|Manufacturer||Eaton / Cutler Hammer|
|Configuration||S47 Option Includes: [12-24V DC Shunt Trip, Right Pole Mounted, Exiting Opposite Side]|
|Interrupting Capacity Rating||18 Kiloampere @ 240VAC, 14 Kiloampere @ 480VAC, 10 Kiloampere @ 600VAC|
|Standard Lug Type||Line and Load|
