Specs are as follows:
KD Frame Style, Molded Case Circuit Breaker, Thermal Magnetic Interchangeable Trip Unit, 300 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 10 Kiloampere @ 250VDC. S42 Option Includes: [12-24V DC Shunt Trip, Left Pole Mounted, Exiting Rear]

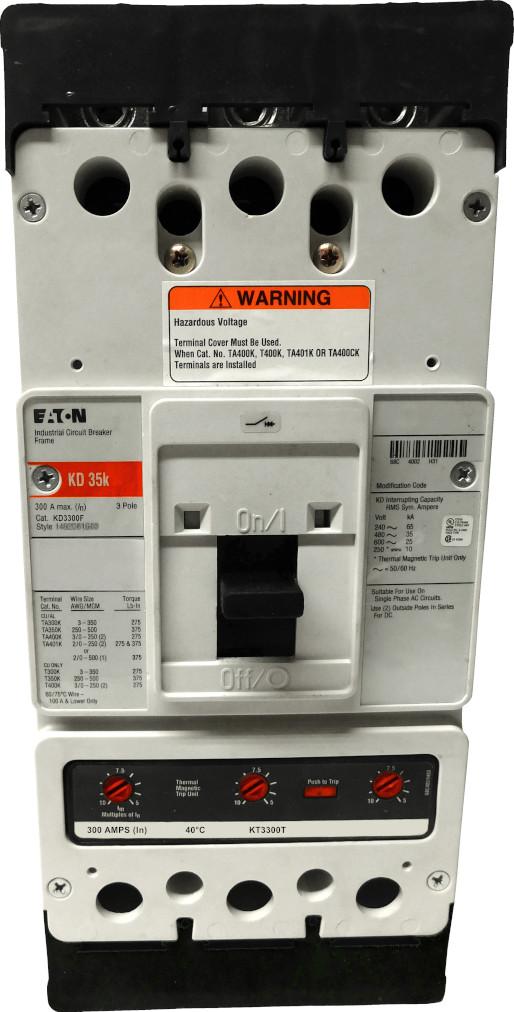

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
|Manufacturer||Eaton / Cutler Hammer|
|Configuration||S42 Option Includes: [12-24V DC Shunt Trip, Left Pole Mounted, Exiting Rear]|
|Interrupting Capacity Rating||65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 10 Kiloampere @ 250VDC|
|Trip Setting||Adjustable 5-10 Times Continuous Ampere Rating|
|Standard Lug Type||Aluminum Line and Load End Terminals Standard|
