Product Description
Specs are as follows:

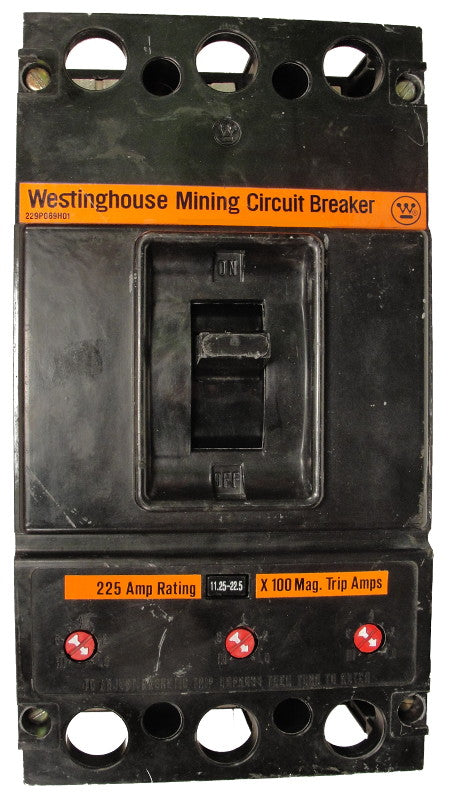

K Frame Style, Molded Case Mining Circuit Breaker, Non-Interchangeable Thermal Magnetic Trip Unit, 225 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 25 Kiloampere @ 240VAC, 22 Kiloampere @ 480VAC, 22 Kiloampere @ 600VAC, No Lugs Standard.
Other prebuilt configurations available:KAM3225 300-700 THERMAL-MAG W/ UVR (1291C26G03)
Specifications
| Manufacturer | Westinghouse |
|---|---|
| Warranty | One Year |
| Connection | Bolt On |
| Frame Type | K |
| Amperage | 225 |
| Poles | 3 |
| Voltage Max | 600 |
| Interrupting Capacity Rating | 25 Kiloampere @ 240VAC, 22 Kiloampere @ 480VAC, 22 Kiloampere @ 600VAC |
| Trip Setting | 300-700 |
| Standard Lug Type | No Lugs Standard |
