KAM3225 1125-2250 THERMAL-MAG
Product Description
May require additional lead time. Reconditioned by AVO certified technicians! Test reports included. Backed by a full one year warranty. The product image shown is for identification purposes only. The item you receive may have cosmetic differences unrelated to function. Such differences may include version, series, frame color or design, lid color or design, label material, label color, label modifications, service stamps, scuffs, scratches, etc. Specs are as follows:

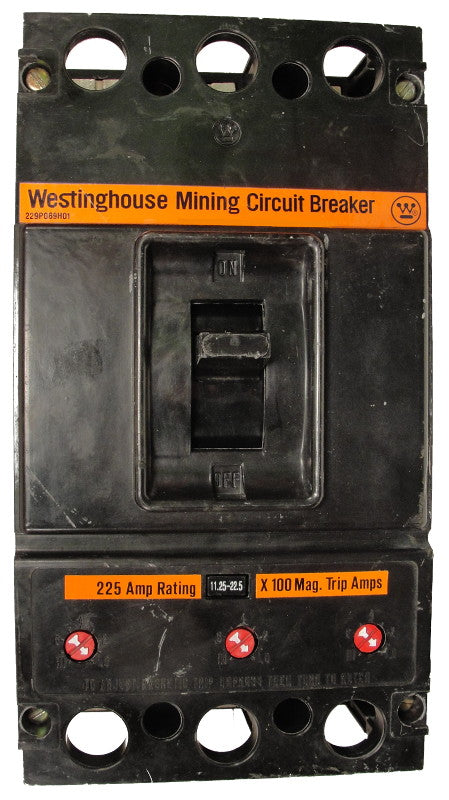

K Frame Style, Molded Case Mining Circuit Breaker, Non-Interchangeable Thermal Magnetic Trip Unit, 225 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 25 Kiloampere @ 240VAC, 22 Kiloampere @ 480VAC, 22 Kiloampere @ 600VAC, 120v UVR installed, No Lugs Standard.
Specifications
| Manufacturer | Westinghouse |
|---|---|
| Warranty | One Year |
| Configuration | 120v UVR |
| Connection | Bolt On |
| Frame Type | K |
| Amperage | 225 |
| Poles | 3 |
| Voltage Max | 600 |
| Interrupting Capacity Rating | 25 Kiloampere @ 240VAC, 22 Kiloampere @ 480VAC, 22 Kiloampere @ 600VAC |
| Trip Setting | 1125-2250 |
| Standard Lug Type | No Lugs Standard |
