Product Description
Specs are as follows:

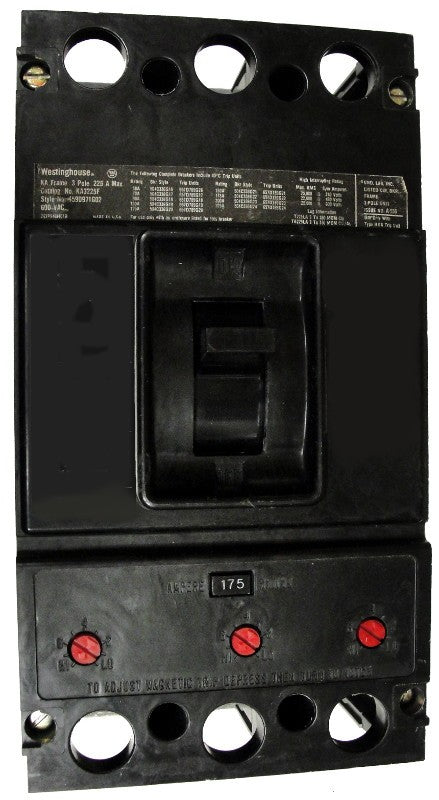

KA Frame Style, Molded Case Circuit Breaker, Thermal Magnetic Non-Interchangeable Trip Unit, 125 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 25 Kiloampere @ 240VAC, 22 Kiloampere @ 480VAC, 22 Kiloampere @ 600VAC, Without Terminals Standard
This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Eaton / Cutler Hammer |
|---|---|
| Warranty | One Year |
| Connection | Bolt On |
| Frame Type | KA |
| Amperage | 125 |
| Poles | 3 |
| Voltage Max | 600 |
| Interrupting Capacity Rating | 25 Kiloampere @ 240VAC, 22 Kiloampere @ 480VAC, 22 Kiloampere @ 600VAC |
| Trip Setting | 350-700 |
| Standard Lug Type | Without Terminals Standard |
