Product Description
Specs are as follows:

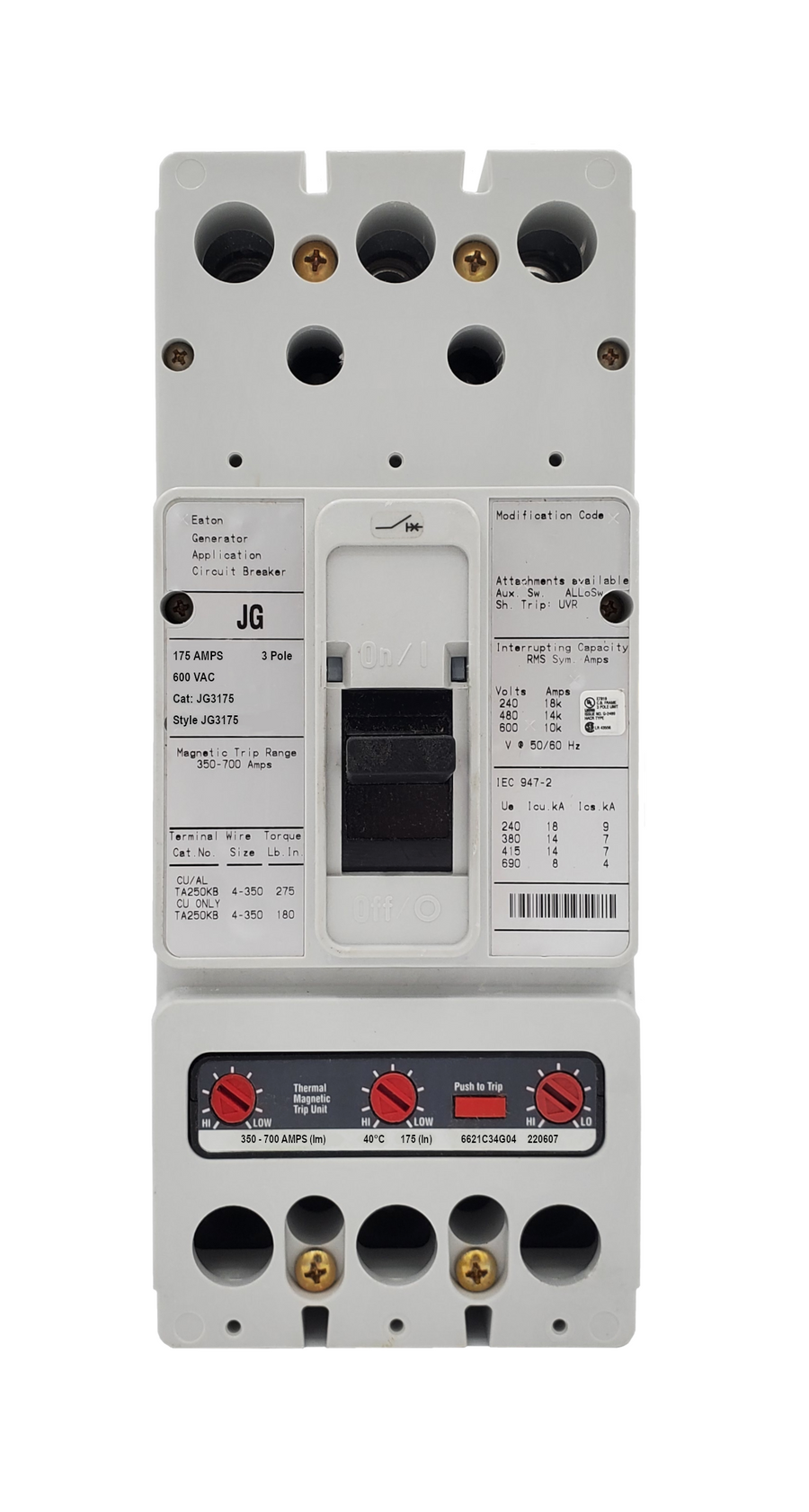

JG Frame Style, Molded Case Generator Circuit Breaker, Thermal Magnetic Interchangeable Trip Unit, 350-700 Trip Range, 175 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 18 Kiloampere @ 240VAC, 14 Kiloampere @ 480VAC, 10 Kiloampere @ 600VAC, Line and Load End Terminals Standard
Look under Parts & Accessories or follow the links below to order accessories used to create additional configurations for this unit.
1. Optional Auxiliary Switches
2. Optional Shunt Trips
3. Terminal/Lug Kit Installed:
TA250KB
4. Optional Undervoltage Releases (UVRs)
Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Eaton / Cutler Hammer |
|---|---|
| Warranty | One Year |
| Connection | Bolt On |
| Frame Type | J |
| Amperage | 175 |
| Poles | 3 |
| Voltage Max | 600 |
| Interrupting Capacity Rating | 18 Kiloampere @ 240VAC, 14 Kiloampere @ 480VAC, 10 Kiloampere @ 600VAC |
| Trip Setting | 350-700 |
| Standard Lug Type | Line and Load |
