Product Description
Specs are as follows:

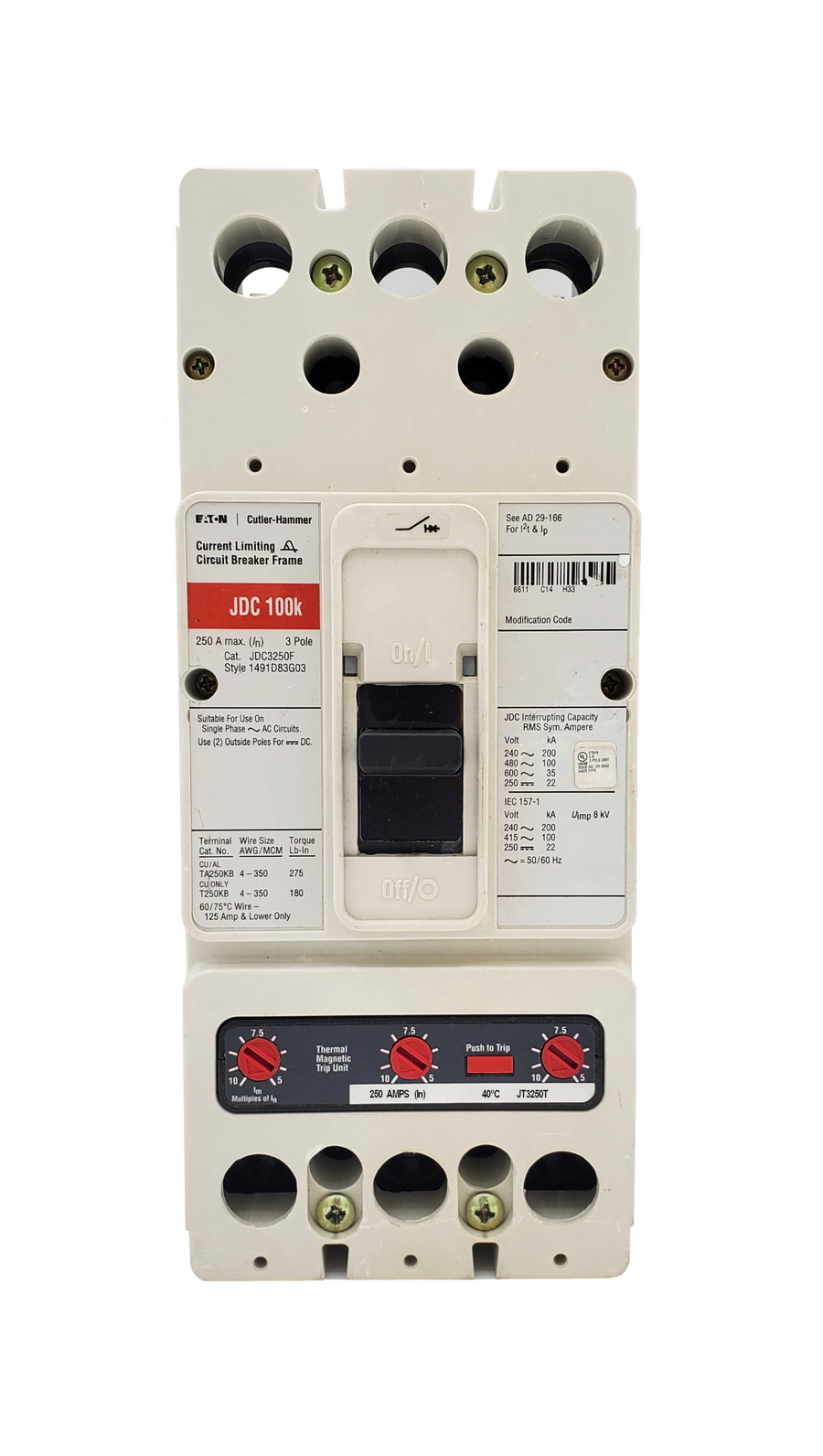

JDC Frame Style, Molded Case Circuit Breaker, Thermal Magnetic Interchangeable Trip Unit, Ultra High Interrupting Capacity, Current Limiting, 250 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 200 Kiloampere @ 240VAC, 100 Kiloampere @ 480VAC, 50 Kiloampere @ 600VAC
This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Eaton / Cutler Hammer |
|---|---|
| Warranty | One Year |
| Connection | Bolt On |
| Frame Type | J |
| Amperage | 250 |
| Poles | 3 |
| Voltage Max | 600 |
| Interrupting Capacity Rating | 200 Kiloampere @ 240VAC, 100 Kiloampere @ 480VAC, 50 Kiloampere @ 600VAC |
| Trip Setting | Adjustable 5-10 Times Continuous Ampere Rating |
| Standard Lug Type | Line and Load |
