JD3090

New Surplus

Qty in Stock: 1

$1,027.00

Certified Reconditioned

Qty in Stock: 3

$690.00

(Blue Label) - Certified Reconditioned

Qty in Stock: 3

$563.00
Look under Parts & Accessories or follow the links below to order accessories used to create additional configurations for this unit.

1. Auxiliary Switches
2. Shunt Trips
3. Terminal/Lug Kits
4. Trip Units
5. Undervoltage Releases (UVRs)

Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.

Product Description

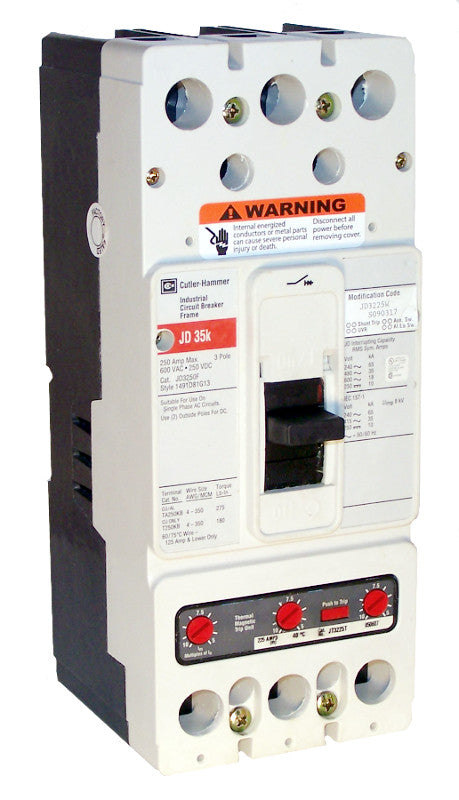

JD Frame Style, Molded Case Circuit Breaker, Thermal Magnetic Interchangeable Trip Unit, 90 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 18 Kiloampere @ 600VAC, 10 Kiloampere @ 250VDC

Specifications


Manufacturer Eaton / Cutler Hammer
Warranty One Year
Connection Bolt On
Frame Type J
Amperage 90
Poles 3
Voltage Max 600
Interrupting Capacity Rating 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 18 Kiloampere @ 600VAC, 10 Kiloampere @ 250VDC
Trip Setting Adjustable 5-10 Times Continuous Ampere Rating
Standard Lug Type Aluminum Line and Load End Terminals Standard
