Specs are as follows:

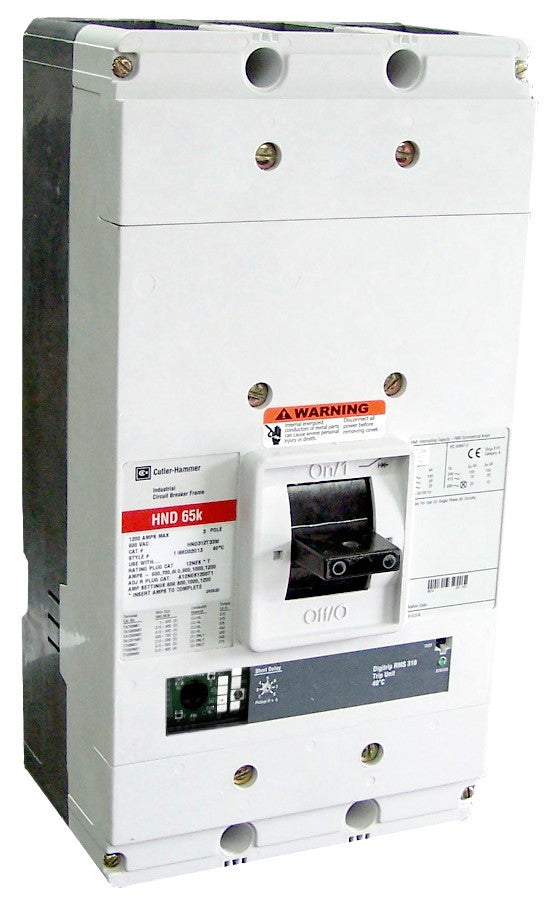

HND Frame Style, Molded Case Circuit Breaker, Electronic Non-Interchangeable Trip Unit(Digitrip RMS 310), LS Trip Unit Functions, 1200 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, High Interrupting Ratings: 100 Kiloampere @ 240VAC, 65 Kiloampere @ 480VAC, 35 Kiloampere @ 600VAC, Rating Plug Not Included, Without Terminals Standard
L - Adjustable Long Delay Pickup (By Adjustable Rating Plug)
S - Adjustable Short Delay Pickup with Fixed Short Delay Time (l2t Response) or Adjustable Short Delay Time (Flat Response)
Follow the links below to order accessories used to create additional configurations for this unit.
Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
|Manufacturer||Eaton / Cutler Hammer|
|Interrupting Capacity Rating||100 Kiloampere @ 240VAC, 65 Kiloampere @ 480VAC, 35 Kiloampere @ 600VAC|
|Standard Lug Type||Without Terminals Standard|
