HNCA31200F w/600A Rating Plug (HNCA3600)
Product Description
HNCA Frame Style, Molded Case Circuit Breaker, Mark 75, LSI Function Non-Interchangeable Trip Unit, High Interrupting Capacity, 3 Pole, 600VAC @ 50/60HZ, High Interrupting Style, Interrupting Ratings: 65 Kiloampere @ 240VAC, 50 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 600A Rating Plug Installed, 1200A Maximum Frame Size, Without Terminals Standard.
L – Adjustable Long Delay Pickup (By Adjustable Rating Plug)
S – Adjustable Short Delay Pickup with Fixed Short Delay Time (I2t Response) or Adjustable Short Time (Flat Response)
I – Adjustable Instantaneous Pickup by Setting Short Time Delay Time to Instantaneous

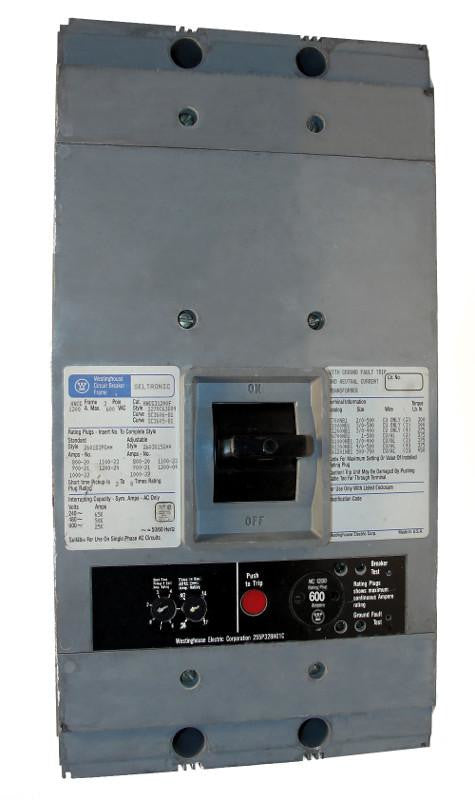

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Westinghouse |
|---|---|
| Warranty | One Year |
| Configuration | 12NC600 |
| Connection | Bolt On |
| Frame Type | HNCA |
| Amperage | 600 |
| Poles | 3 |
| Voltage Max | 600 VAC |
| Interrupting Capacity Rating | 65 Kiloampere @ 240VAC, 50 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC |
| Trip Setting | 1,200-4,800 |
| Standard Lug Type |
Without Terminals Standard |
New Surplus
Certified Reconditioned
Qty in Stock: 1
