HMDLDC3400

New Surplus

Qty in Stock: 1

$6,195.00

Certified Reconditioned

Qty in Stock: 1

$3,995.00
Delivery
Free with $500 Order
Get it by

Product Description

Specs are as follows:

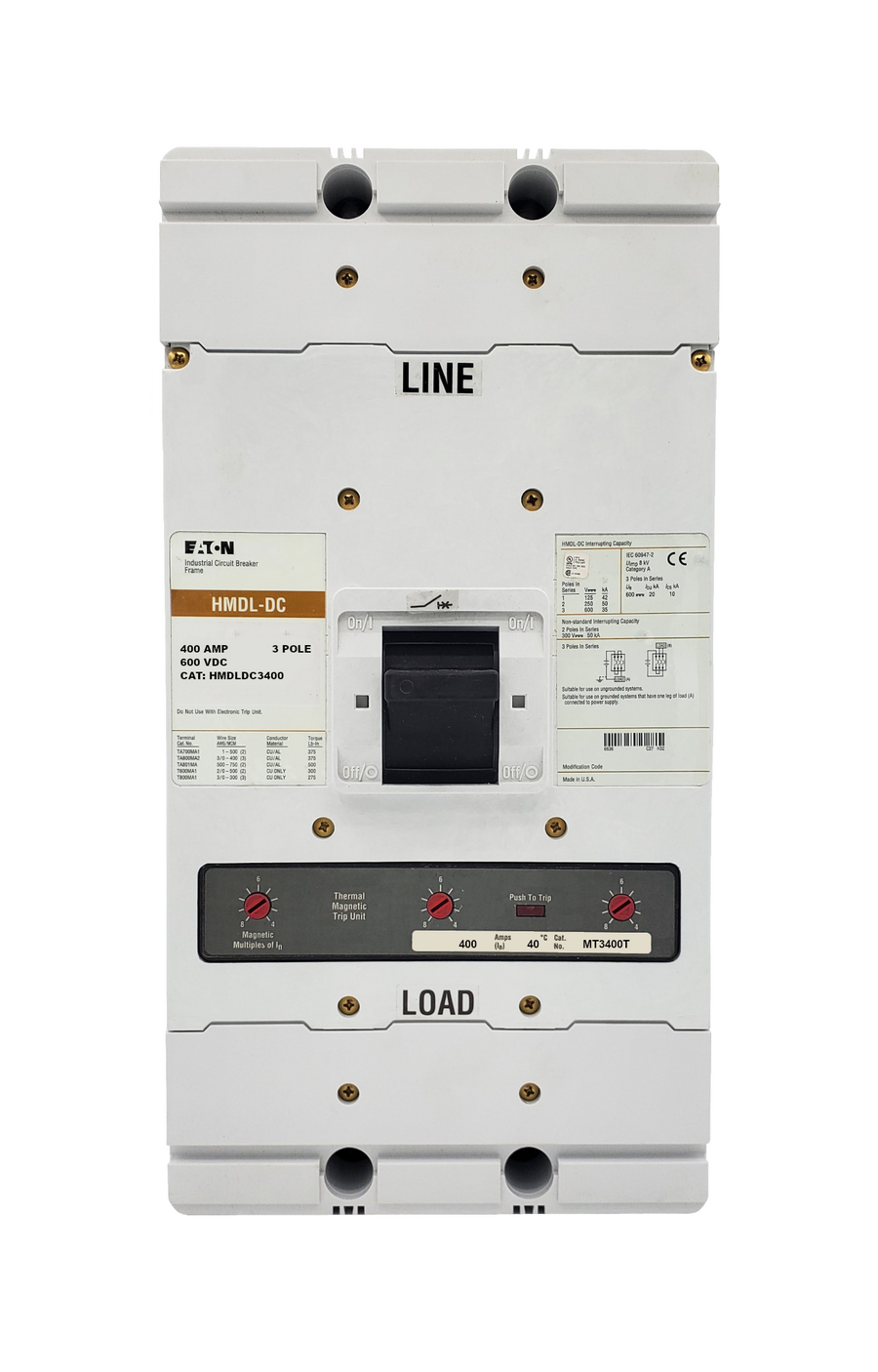

HMDLDC Frame Style, Molded Case Circuit Breaker, Thermal Magnetic Interchangeable Trip Unit, 400 Ampere at 40 Degree Celsius, 3 Pole, 600VDC @ 50/60HZ, High Interrupting Ratings: 1 Pole in Series - 42 Kiloampere @ 125VDC, 2 Poles in Series - 50 Kiloampere @ 250VDC, 3 Poles in Series - 35 Kiloampere @ 600VDC, With Terminals Standard.

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.

Specifications

Manufacturer Eaton / Cutler Hammer
Warranty One Year
Configuration
Connection Bolt On
Frame Type M
Amperage 400
Poles 3
Voltage Max 600 VDC
Interrupting Capacity Rating 1 Pole in Series - 42 Kiloampere @ 125VDC, 2 Poles in Series - 50 Kiloampere @ 250VDC, 3 Poles in Series - 35 Kiloampere @ 600VDC
Trip Setting 5-10 Times the Continuous Ampere Rating
Standard Lug Type With Terminals Standard
