Product Description
Specs are as follows:
Motor Circuit Protector (MCP),F Frame Style, Molded Case Circuit Breaker, MCPs for Application with Motor Starters Equipped with Electronic Overload Relays, Magnetic Non-interchangeable Trip Unit, Instantaneous-only, 50 Amperes, 3 Pole, 150-500 Trip Setting, Nema Starter Size 2, Motor Full Load Current Amperes 11.5-42.1, Non-aluminum Terminals Standard, 600VAC, 250VDC Maximum.

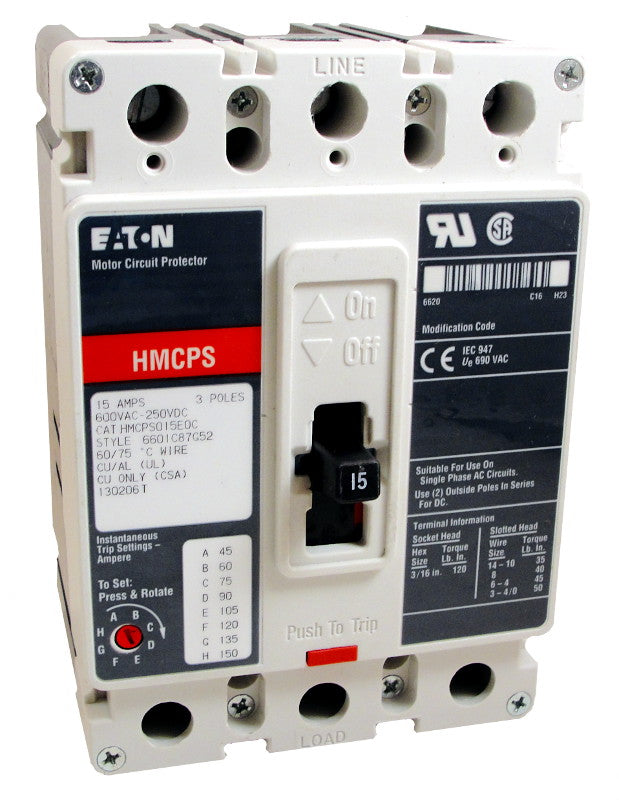

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
Manufacturer | Eaton / Cutler Hammer |
---|---|
Warranty | One Year |
Connection | Bolt On |
Frame Type | F |
Amperage | 100 |
Poles | 3 |
Voltage Max | 600 |
Nema Size | 3 |
Trip Setting | 300-1000 |
Motor FLA | 23.0-84.5 |
