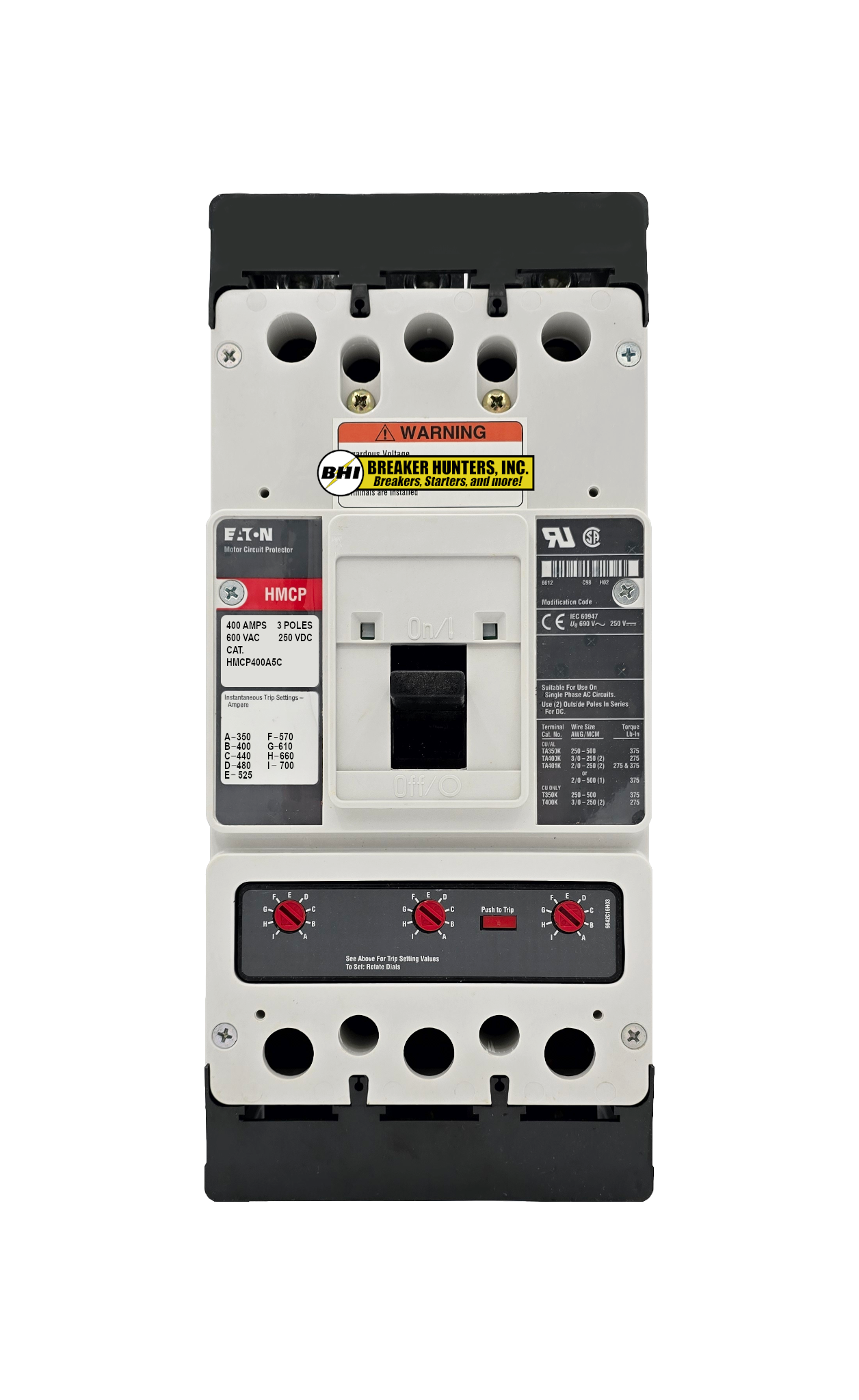

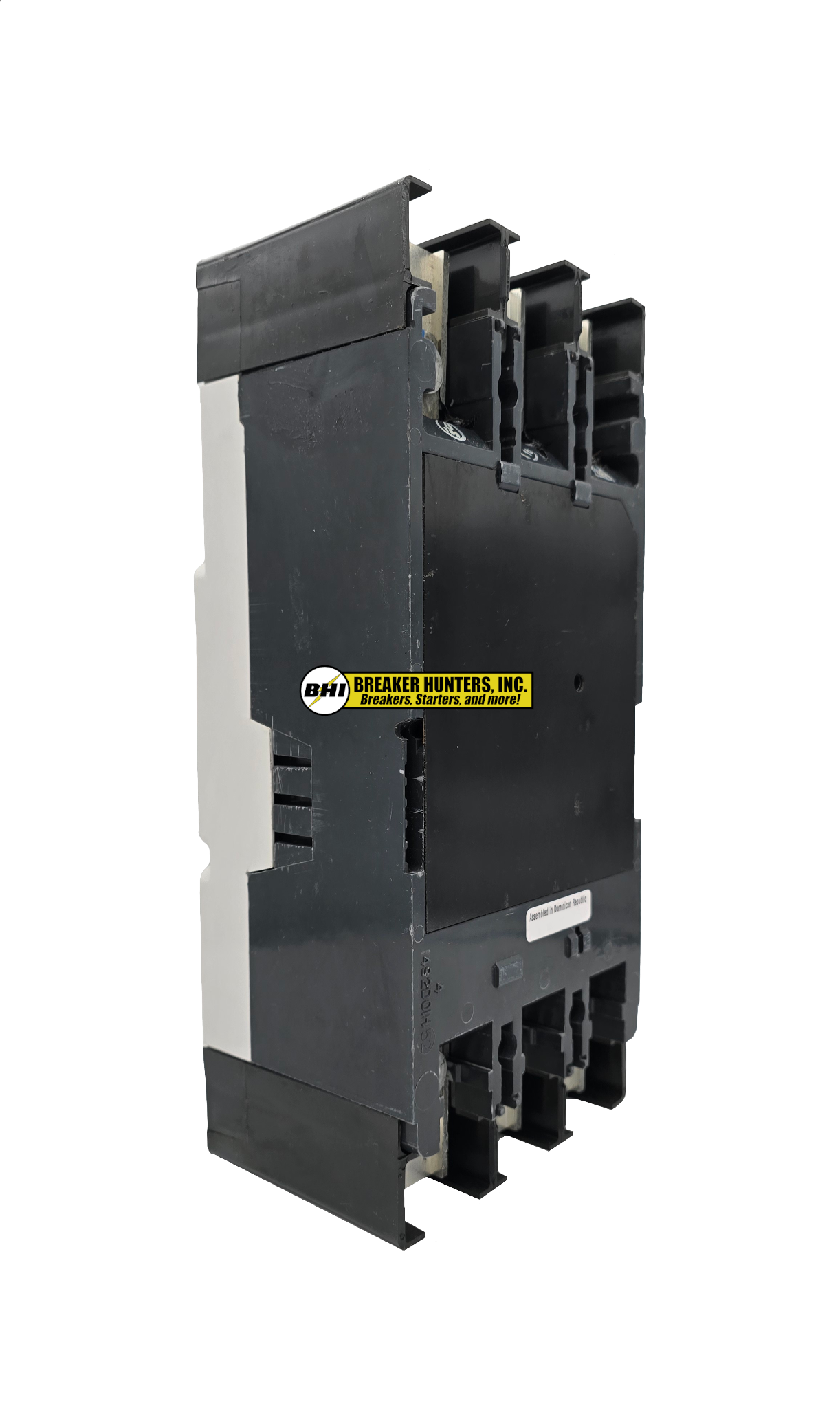

Motor Circuit Protector (MCP) K Frame Style Molded Case Circuit Breaker
Look under Parts & Accessories or follow the links below to order accessories used to create additional configurations for this unit.
1. Auxiliary Switches
2. Shunt Trips
3. Terminal/Lug Kits
4. Terminal/Lugs Special Application
5. Undervoltage Releases (UVRs)
Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Product Description
Specs are as follows:
Motor Circuit Protector (MCP),K Frame Style, Molded Case Circuit Breaker, Magnetic Non-interchangeable Trip Unit, Instantaneous-only, 400 Amperes, 3 Pole, 350-700 Trip Setting, Nema Starter Size 4-5, Motor Full Load Current Amperes 27.0-57.2, Copper Terminals Standard, 600VAC, 250VDC Maximum.
Specifications
| Manufacturer | Eaton / Cutler Hammer |
|---|---|
| Warranty | One Year |
| Connection | Bolt On |
| Frame Type | K |
| Amperage | 400 |
| Poles | 3 |
| Voltage Max | 600 |
| Nema Size | 4-5 |
| Trip Setting | 350-700 |
| Motor FLA | 27.0-57.2 |
