Product Description
Specs are as follows:
HMCA Frame Style, Molded Case Circuit Breaker, Mark 75, LSI Function Non-Interchangeable Trip Unit, 3 Pole, 600VAC @ 50/60HZ, High Interrupting Style, Interrupting Ratings: 65 Kiloampere @ 240VAC, 50 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, with 500 Amp Rating Plug, Without Terminals Standard
L – Adjustable Long Delay Pickup (By Adjustable Rating Plug)
S – Adjustable Short Delay Pickup with Fixed Short Delay Time (I2t Response) or Adjustable Short Time (Flat Response)
I – Adjustable Instantaneous Pickup by Setting Short Time Delay Time to Instantaneous

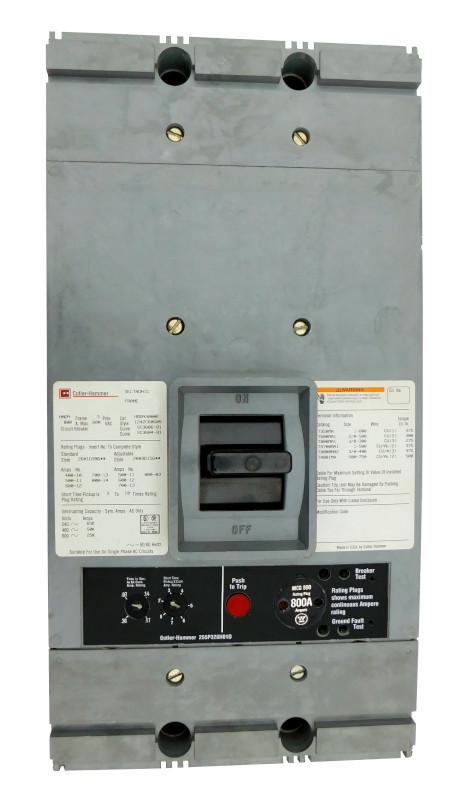

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
Manufacturer | Westinghouse |
---|---|
Warranty | One Year |
Configuration | 8MC500 |
Connection | |
Frame Type | M Frame |
Amperage | 500 Amp |
Poles | 3 |
Voltage Max | 600V |
Interrupting Capacity Rating | Interrupting Ratings: 65 Kiloampere @ 240VAC, 50 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC |
Trip Setting | 1500-5000 |
Standard Lug Type | Without Terminals Standard |
