HLDDC3500W

New Surplus

Click for Info
$6,995.00

Certified Reconditioned

Qty in Stock: 1

$4,495.00
Delivery
Free with $500 Order
Get it by

Product Description

Specs are as follows:

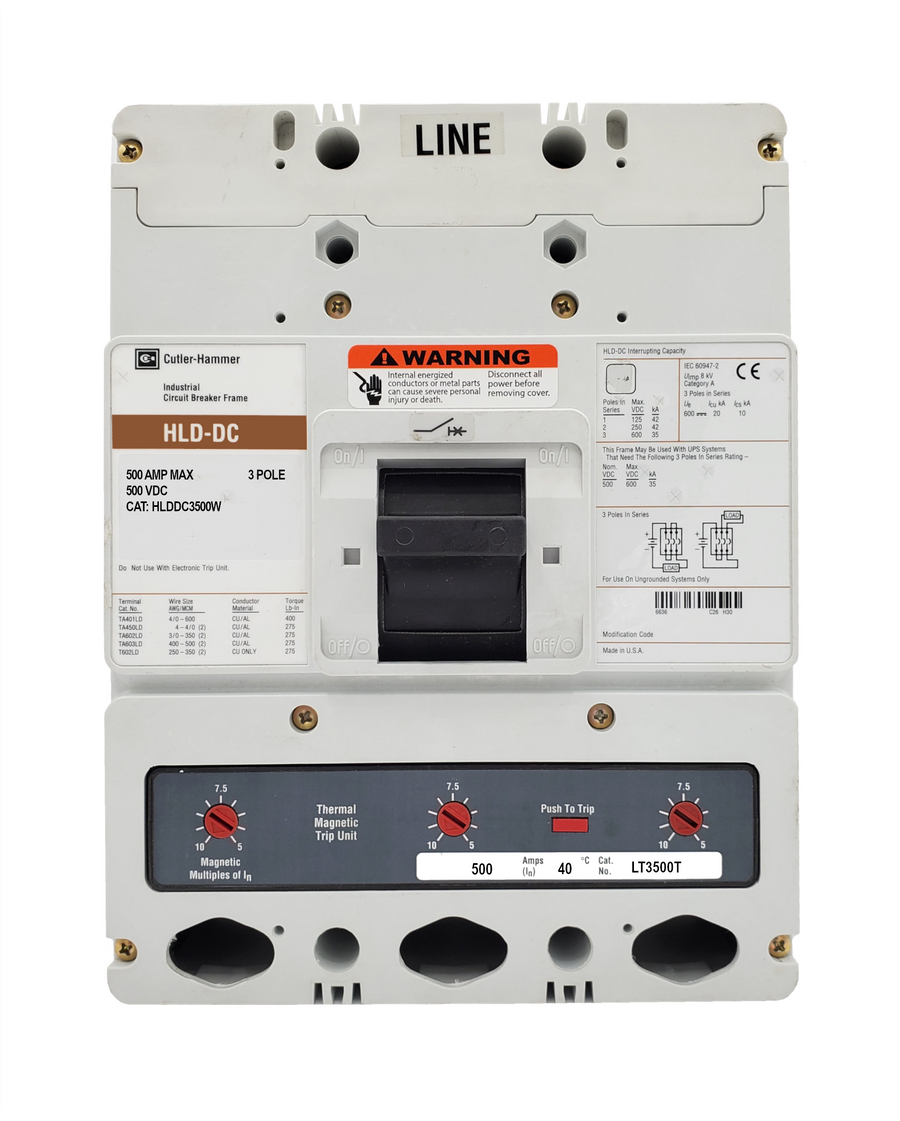

HLD Frame Style, Molded Case Circuit Breaker, High Interrupting Capacity, DC Rated, Thermal Magnetic Interchangeable Trip Unit, 500 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 1 Pole in Series - 42 Kiloampere @ 125VDC, 2 Poles in Series - 50 Kiloampere @ 250VDC, 3 Poles in Series - 35 Kiloampere @ 600VDC, Without Terminals Standard

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.

Specifications

Manufacturer Eaton / Cutler Hammer
Warranty One Year
Configuration
Connection Bolt On
Frame Type L
Amperage 500
Poles 3
Voltage Max 600VDC
Interrupting Capacity Rating Interrupting Ratings: 1 Pole in Series - 42 Kiloampere @ 125VDC, 2 Poles in Series - 50 Kiloampere @ 250VDC, 3 Poles in Series - 35 Kiloampere @ 600VDC
Trip Setting Adjustable 5-10 Times Continuous Ampere Rating
Standard Lug Type Without Terminals Standard
