Specs are as follows:
HLD Frame Style, Molded Case Circuit Breaker, High Interrupting Capacity, DC Rated, Thermal Magnetic Interchangeable Trip Unit, 500 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 1 Pole in Series - 42 Kiloampere @ 125VDC, 2 Poles in Series - 50 Kiloampere @ 250VDC, 3 Poles in Series - 35 Kiloampere @ 600VDC, With Terminals Standard.

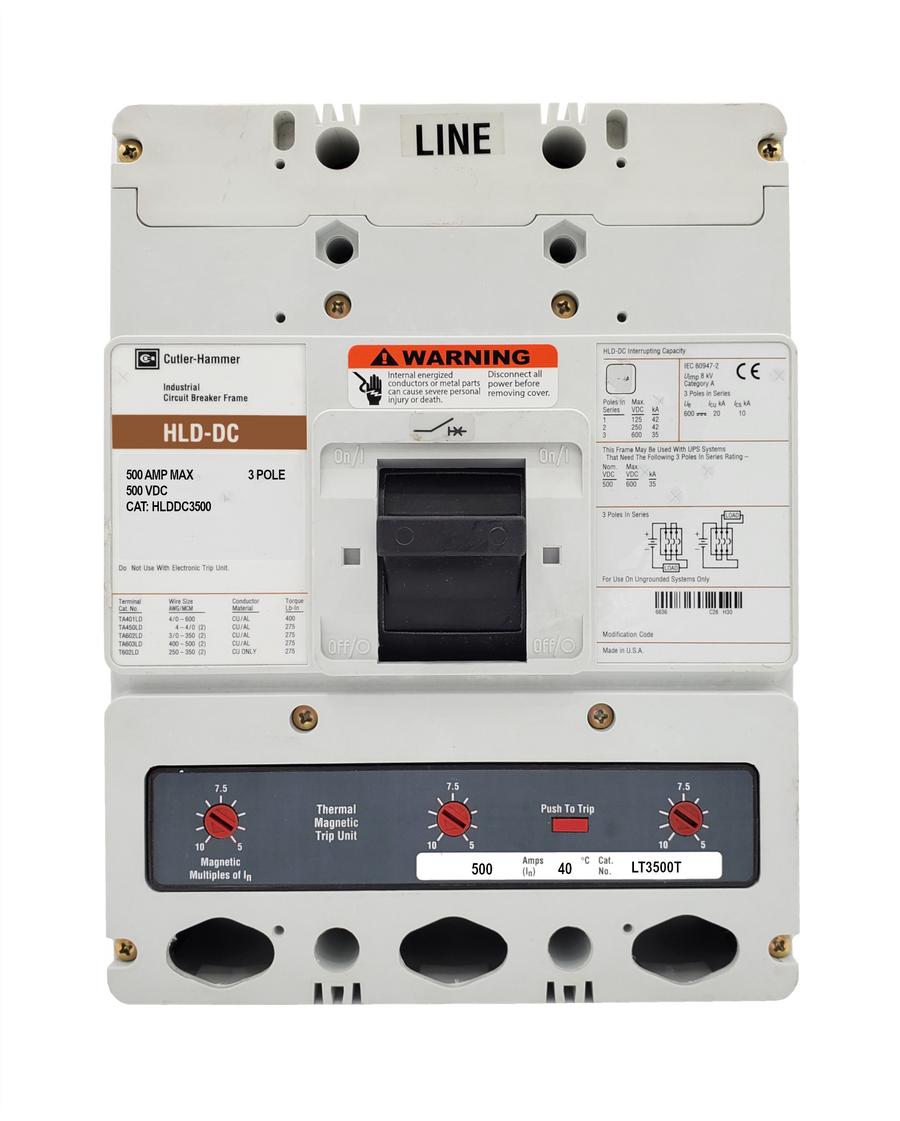

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
|Manufacturer||Eaton / Cutler Hammer|
|Interrupting Capacity Rating||Interrupting Ratings: 1 Pole in Series - 42 Kiloampere @ 125VDC, 2 Poles in Series - 50 Kiloampere @ 250VDC, 3 Poles in Series - 35 Kiloampere @ 600VDC|
|Trip Setting||Adjustable 5-10 Times Continuous Ampere Rating
|Standard Lug Type||With Terminals Standard.
