HLDDC3300W
Product Description
HLD Frame Style, Molded Case Circuit Breaker, High Interrupting Capacity, DC Rated, Thermal Magnetic Interchangeable Trip Unit, 300 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 1 Pole in Series - 42 Kiloampere @ 125VDC, 2 Poles in Series - 50 Kiloampere @ 250VDC, 3 Poles in Series - 35 Kiloampere @ 600VDC, Without Terminals Standard

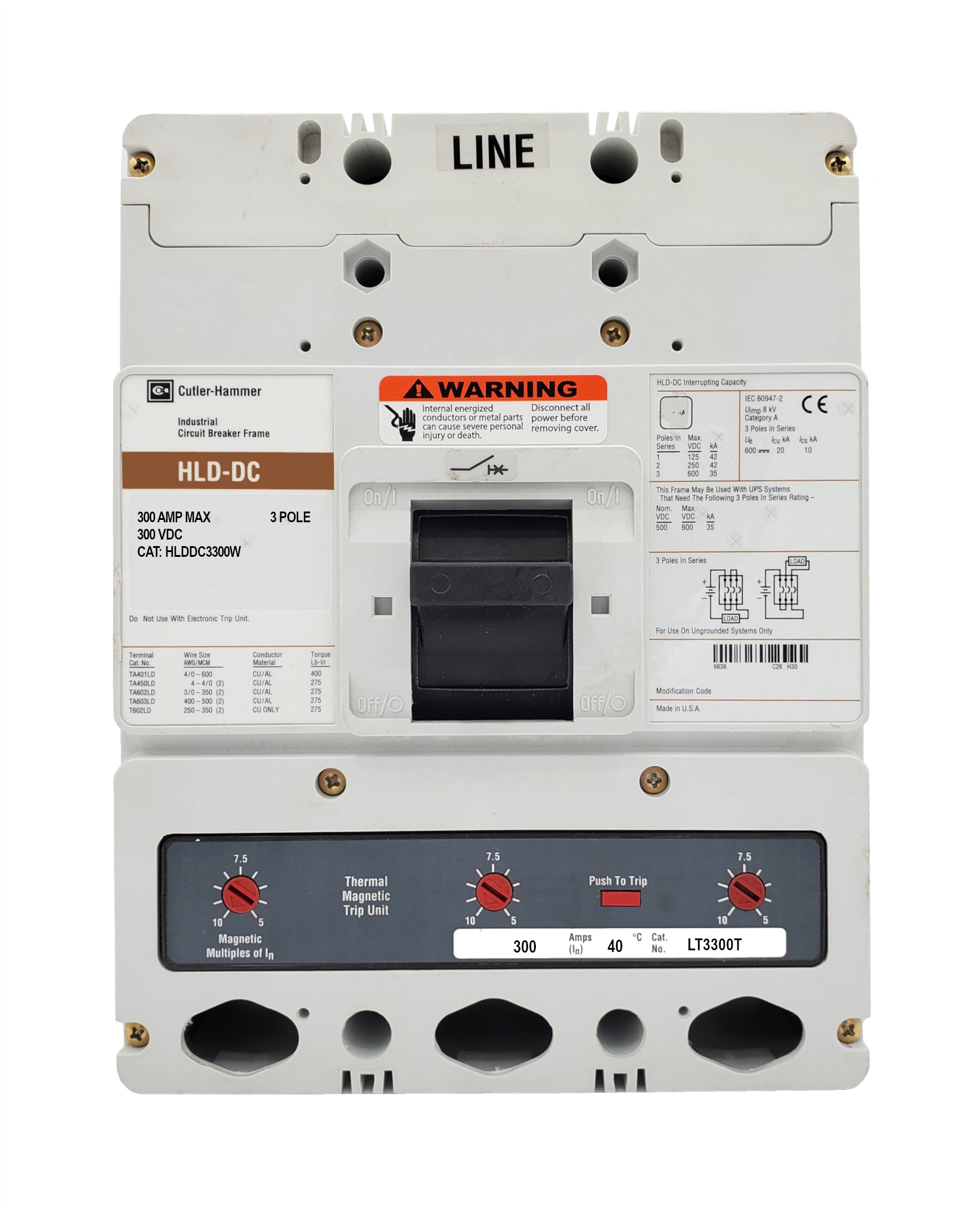

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Eaton / Cutler Hammer |
|---|---|
| Warranty | One Year |
| Configuration | |
| Connection | Bolt On |
| Frame Type | L |
| Amperage | 300 |
| Poles | 3 |
| Voltage Max | 600VDC |
| Interrupting Capacity Rating | Interrupting Ratings: 1 Pole in Series - 42 Kiloampere @ 125VDC, 2 Poles in Series - 50 Kiloampere @ 250VDC, 3 Poles in Series - 35 Kiloampere @ 600VDC |
| Trip Setting | Adjustable 5-10 Times Continuous Ampere Rating |
| Standard Lug Type | Without Terminals Standard |
New Surplus
Qty in Stock: 1
Certified Reconditioned
Qty in Stock: 1
