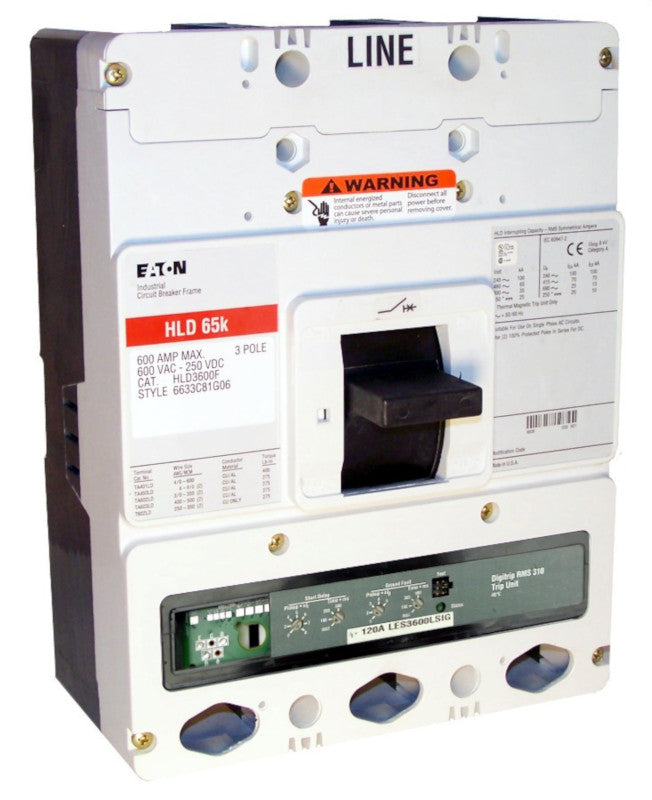

HLD3600F w/LES3600LSIG (RMS 310)
Specs are as follows:
HLD Frame Style, Molded Case Circuit Breaker, LSIG Function Non-Interchangeable Trip Unit, 600 Ampere Max at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, High Interrupting Capacity, Interrupting Ratings: 100 Kiloampere @ 240VAC, 65 Kiloampere @ 480VAC, 35 Kiloampere @ 600VAC, Rating Plug Not Included, Without Terminals Standard
L – Adjustable Long Delay Pickup (By Adjustable Rating Plug)
S – Adjustable Short Delay Pickup with Fixed Short Delay Time (I2t Response) or Adjustable Short Time (Flat Response)
I – Adjustable Instantaneous Pickup by Setting Short Time Delay Time to Instantaneous
G – Adjustable Ground Fault Pickup with Adjustable Ground Fault Delay (Flat Response)
ATTENTION: This unit requires a rating plug in order to function. Please choose and add a rating plug to your cart before placing your order to ensure you receive a complete, working unit.
Follow the links below to order accessories used to create additional configurations for this unit.
1. Optional Auxiliary Switches:
2. Optional Rating Plugs:
3. Optional Shunt Trips:
4. Optional Undervoltage Releases (UVRs):
5. Optional Terminal/Lug Kits:
Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
|Manufacturer||Eaton / Cutler Hammer|
|Interrupting Capacity Rating||100 Kiloampere @ 240VAC, 65 Kiloampere @ 480VAC, 35 Kiloampere @ 600VAC|
|Trip Setting||Adjustable 5-10 Times Continuous Ampere Rating|
|Standard Lug Type||Without Terminals|
