HLCGA3400 (HLCGA3600F w/400 Amp Rating Plug)

Call for Price

New Surplus

Click for Info
$11,345.00

Certified Reconditioned

Click for Info
$4,995.00
Delivery
Free with $500 Order
Get it by

Product Description

Specs are as follows:

HLCGA Frame Style, Molded Case Circuit Breaker, High Interrupting Capacity, LSIG Function Non-Interchangeable Trip Unit, 400 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 600 Amp Max Frame, with 400 Amp Rating Plug Installed, Without Terminals Standard

L – Adjustable Long Delay Pickup (By Adjustable Rating Plug)

S – Adjustable Short Delay Pickup with Fixed Short Delay Time (I2t Response) or Adjustable Short Time (Flat Response)

I – Adjustable Instantaneous Pickup by Setting Short Time Delay Time to Instantaneous

G – Adjustable Ground Fault Pickup with Adjustable Ground Fault Delay (Flat Response)

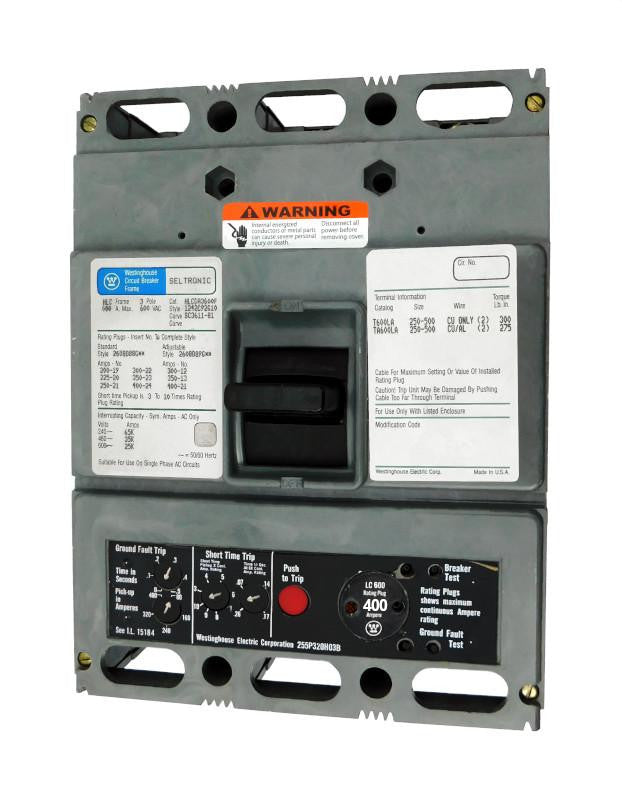

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.

Specifications

Manufacturer Westinghouse
Warranty One Year
Configuration 6LC400
Connection
Frame Type L
Amperage 400
Poles 3
Voltage Max 600
Interrupting Capacity Rating 65 Kiloampere @ 240VAC, 35 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC
Trip Setting 1200-4000
Standard Lug Type Without Terminals Standard
