Product Description
Specs are as follows:
HLB Frame Style, Molded Case Circuit Breaker, Mark 75, Thermal Magnetic Interchangeable Trip Unit, 400 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, High Interrupting Style, Interrupting Ratings: 75 Kiloampere @ 240VAC, 40 Kiloampere @ 480VAC, 30 Kiloampere @ 600VAC, Without Terminals Standard

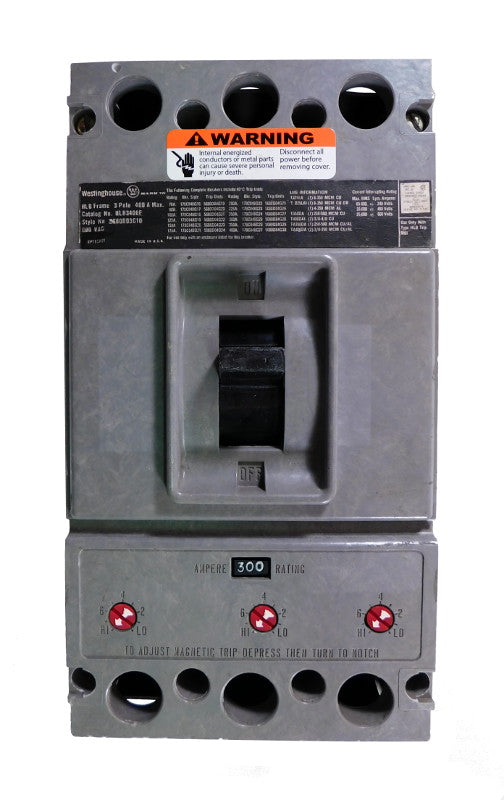

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Westinghouse |
|---|---|
| Warranty | One Year |
| Connection | |
| Frame Type | LB |
| Amperage | 400 |
| Poles | 3 |
| Voltage Max | 600 |
| Interrupting Capacity Rating | 75 Kiloampere @ 240VAC, 40 Kiloampere @ 480VAC, 30 Kiloampere @ 600VAC |
| Trip Setting | 2000-4000 |
| Standard Lug Type | Without Terminals Standard |
