HLA3600F w/250A Trip Unit
Product Description
HLA Frame Style, 600 Amp Max Frame, Molded Case Circuit Breaker, Mark 75, Thermal Magnetic Interchangeable Trip Unit, 250 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, High Interrupting Style, Interrupting Ratings: 75 Kiloampere @ 240VAC, 40 Kiloampere @ 480VAC, 30 Kiloampere @ 600VAC, Without Terminals Standard.

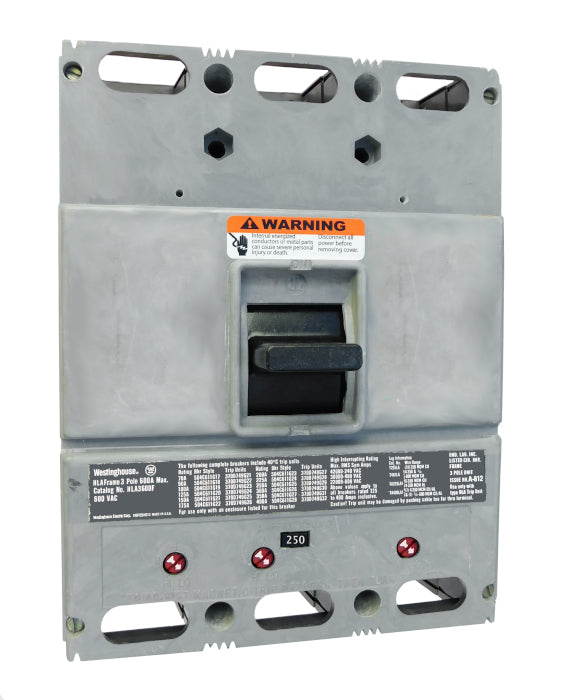

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Westinghouse / Cutler-Hammer |
|---|---|
| Warranty | One Year |
| Connection | Bolt On |
| Frame Type | LA |
| Amperage | 250 |
| Poles | 3 |
| Voltage Max | 600 |
| Interrupting Capacity Rating | 75 Kiloampere @ 240VAC, 40 Kiloampere @ 480VAC, 30 Kiloampere @ 600VAC |
| Trip Setting | 1250-2500 |
| Standard Lug Type | Without Terminals Standard |
New Surplus
Qty in Stock: 1
$8,995.00
Certified Reconditioned
Qty in Stock: 1
$3,340.00
