Product Description

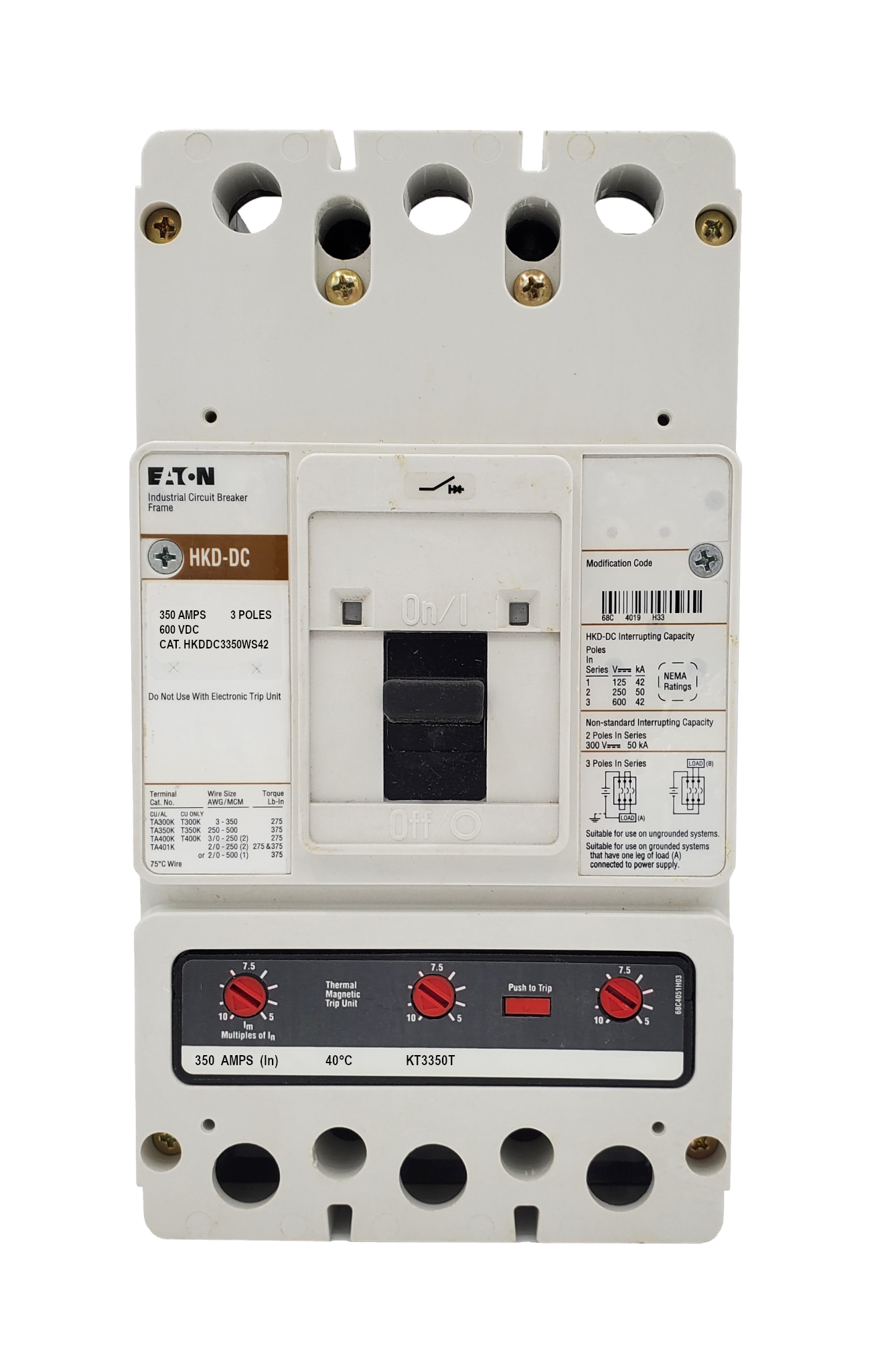

HKD Frame Style, Molded Case Circuit Breaker, High Interrupting Capacity, DC Rated, Thermal Magnetic Interchangeable Trip Unit, 350 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 1 Pole in Series - 42 kiloampere @ 125VDC, 2 Poles in Series - 50 kiloampere @ 250VDC, 3 Poles in Series - 42 kiloampere @ 600VDC, S42 Option Includes: [12-24V DC Shunt Trip, Left Pole Mounted, Exiting Rear], Without Terminals Standard.
This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Eaton / Cutler-Hammer |
|---|---|
| Warranty | One Year |
| Configuration | S42 Option Includes: [12-24V DC Shunt Trip, Left Pole Mounted, Exiting Rear] |
| Connection | Bolt On |
| Frame Type | K |
| Amperage | 350 |
| Poles | 3 |
| Voltage Max | 600 VDC |
| Interrupting Capacity Rating | Interrupting Ratings: 1 Pole in Series - 42 kiloampere @ 125VDC, 2 Poles in Series - 50 kiloampere @ 250VDC, 3 Poles in Series - 42 kiloampere @ 600VDC |
| Trip Setting | Adjustable 5-10 Times Continuous Ampere Rating |
| Standard Lug Type | Without Terminals Standard |
HKDDC3350WS42
Many Ways to Pay
We accept all major credit cards, and offer Net Terms and Bank Transfers for qualified companies.
Shop with Confidence
Enjoy a free 1 year warranty on all products sold by BHI.
Description
Product Description
HKD Frame Style, Molded Case Circuit Breaker, High Interrupting Capacity, DC Rated, Thermal Magnetic Interchangeable Trip Unit, 350 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 1 Pole in Series - 42 kiloampere @ 125VDC, 2 Poles in Series - 50 kiloampere @ 250VDC, 3 Poles in Series - 42 kiloampere @ 600VDC, S42 Option Includes: [12-24V DC Shunt Trip, Left Pole Mounted, Exiting Rear], Without Terminals Standard.
This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Eaton / Cutler-Hammer |
|---|---|
| Warranty | One Year |
| Configuration | S42 Option Includes: [12-24V DC Shunt Trip, Left Pole Mounted, Exiting Rear] |
| Connection | Bolt On |
| Frame Type | K |
| Amperage | 350 |
| Poles | 3 |
| Voltage Max | 600 VDC |
| Interrupting Capacity Rating | Interrupting Ratings: 1 Pole in Series - 42 kiloampere @ 125VDC, 2 Poles in Series - 50 kiloampere @ 250VDC, 3 Poles in Series - 42 kiloampere @ 600VDC |
| Trip Setting | Adjustable 5-10 Times Continuous Ampere Rating |
| Standard Lug Type | Without Terminals Standard |
