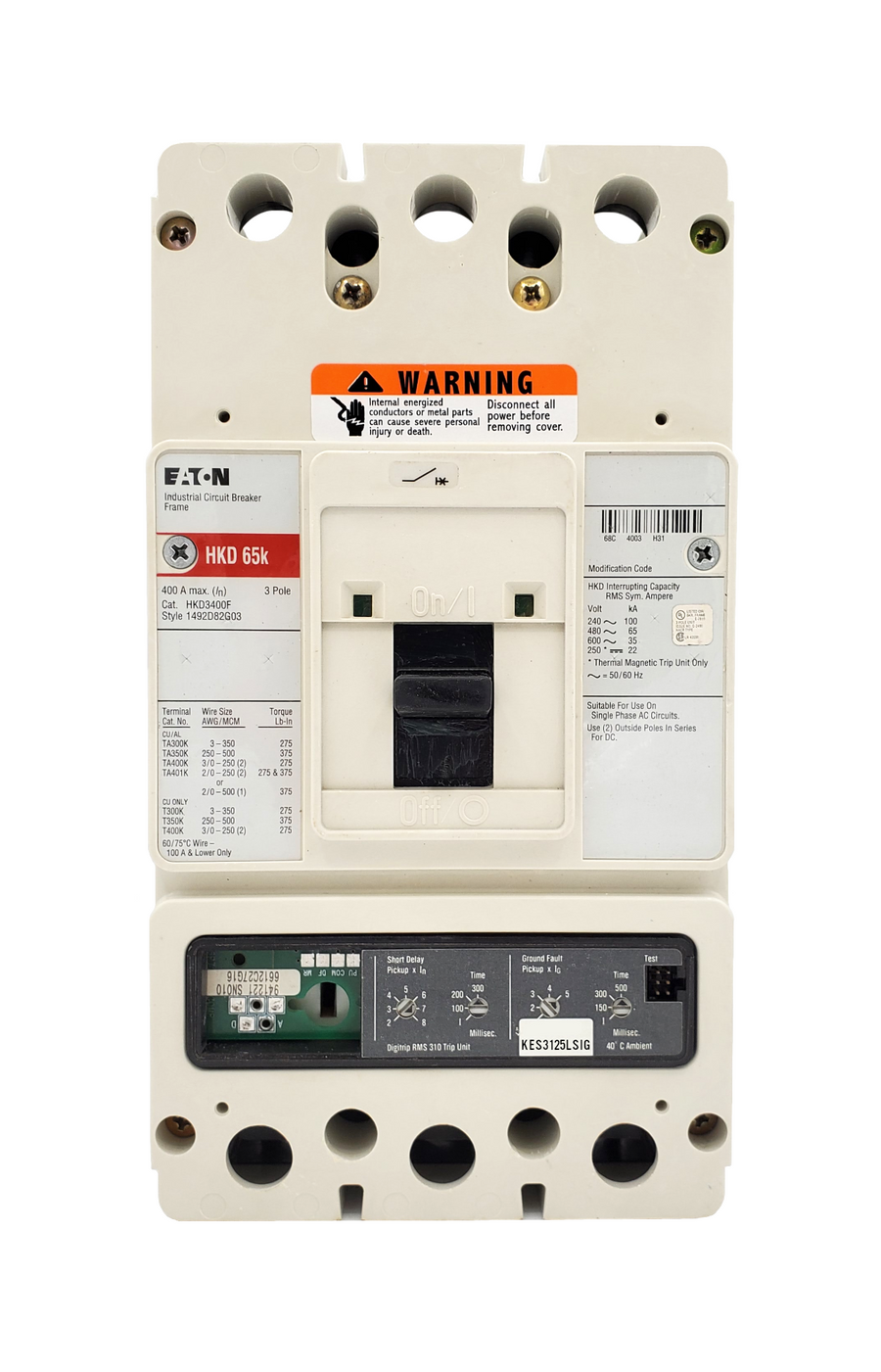

HKD3400F w/KES3125LSIG - HKD3125FT36W (RMS 310)

New Surplus

Qty in Stock: 1

$5,090.00

Certified Reconditioned

Qty in Stock: 1

$3,365.00
Delivery
Free with $500 Order
Get it by

Product Description

Specs are as follows:

HKD Frame Style, Molded Case Circuit Breaker, High Interrupting Capacity, Electronic Digitrip RMS 310, 125 Ampere Max at 40 Degree Celsius, Amperage Determined By Rating Plug, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 100 Kiloampere @ 240VAC, 65 Kiloampere @ 480VAC, 35 Kiloampere @ 600VAC, 22 Kiloampere @ 250VDC, Rating Plug Not Included, Without Terminals Standard

L – Adjustable Long Delay Pickup (By Adjustable Rating Plug)

S – Adjustable Short Delay Pickup with Fixed Short Delay Time (I2t Response) or Adjustable Short Time (Flat Response)

I – Adjustable Instantaneous Pickup by Setting Short Time Delay Time to Instantaneous

G – Adjustable Ground Fault Pickup with Adjustable Ground Fault Delay (Flat Response)

ATTENTION: This unit requires a rating plug in order to function. Please give us a call or notate during checkout which rating plug you are needing before placing your order to ensure you receive a complete, working unit.

Below is a list of available rating plugs:
1KES070T / 1KES090T / 1KES100T / 1KES110T / 1KES125T / A1KES125T1

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.

Specifications


Manufacturer Eaton / Cutler Hammer
Warranty One Year
Connection Bolt On
Frame Type K
Amperage 125 Max
Poles 3
Voltage Max 600
Interrupting Capacity Rating 100 Kiloampere @ 240VAC, 65 Kiloampere @ 480VAC, 35 Kiloampere @ 600VAC, 22 Kiloampere @ 250VDC
Standard Lug Type Without Terminals
