Product Description
Specs are as follows:

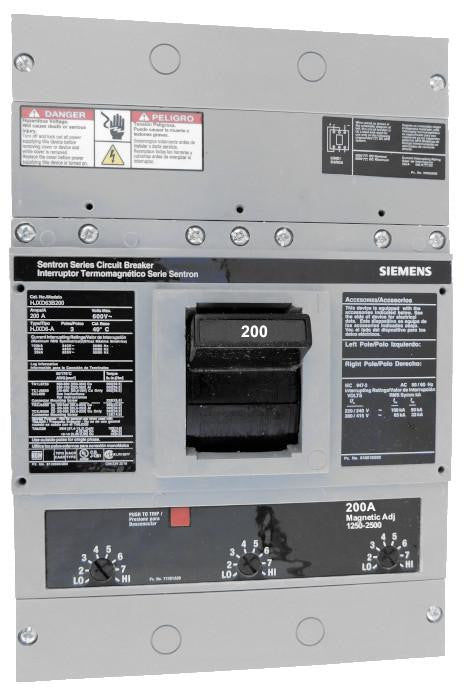

HJD Frame Style, Molded Case Circuit Breaker, High Interrupting Capacity, Thermal Magnetic Non-Interchangeable Trip Unit, 200 Ampere at 40 Degree Celsius, 3 Pole, 240V AC, 480V AC, and 600V AC @ 50/60 HZ, Interrupting Ratings: 100 Kiloampere @ 240V AC, 65 Kiloampere @ 480V AC, 35 Kiloampere @ 600V AC, 30 Kiloampere @ 250V DC, Without Terminals Standard
This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Siemens / ITE |
|---|---|
| Warranty | One Year |
| Connection | Bolt On |
| Frame Type | J |
| Amperage | 200 |
| Poles | 3 |
| Voltage Max | 600 |
| Interrupting Capacity Rating | 100 Kiloampere @ 240V AC, 65 Kiloampere @ 480V AC, 35 Kiloampere @ 600V AC, 30 Kiloampere @ 250V DC |
| Trip Setting | 1250-2500 |
| Standard Lug Type | Without Terminals |
