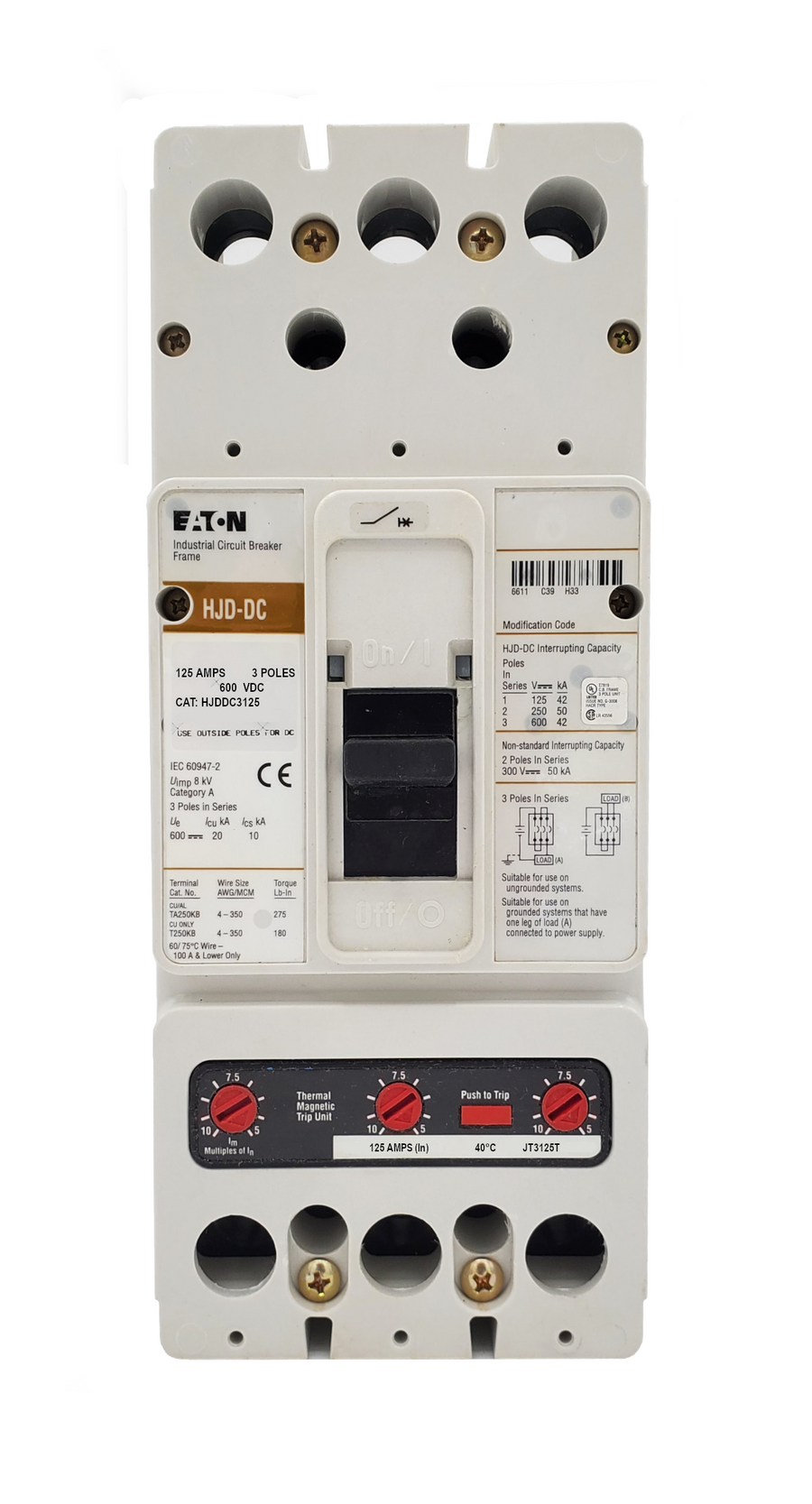

HJDDC Frame Style, Molded Case Circuit Breaker, High Interrupting Capacity, DC Rated, Thermal Magnetic Interchangeable Trip Unit, 125 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 1 Pole in Series - 42 Kiloampere @ 125VDC, 2 Poles in Series - 50 Kiloampere @ 250VDC, 3 Poles in Series - 42 Kiloampere @ 600VDC, Aluminum Line and Load End Terminals Standard
Look under Parts & Accessories or follow the links below to order accessories used to create additional configurations for this unit.
1. Optional Auxiliary Switches
2. Optional Shunt Trips
3. Terminal/Lug Kit Installed:
4. Optional Undervoltage Releases (UVRs)
Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
|Manufacturer||Eaton / Cutler Hammer|
|Voltage Max||600 (DC)|
|Interrupting Capacity Rating||1 Pole in Series - 42 Kiloampere @ 125VDC, 2 Poles in Series - 50 Kiloampere @ 250VDC, 3 Poles in Series - 42 Kiloampere @ 600VDC|
|Standard Lug Type||Line and Load|
