Product Description
Specs are as follows:

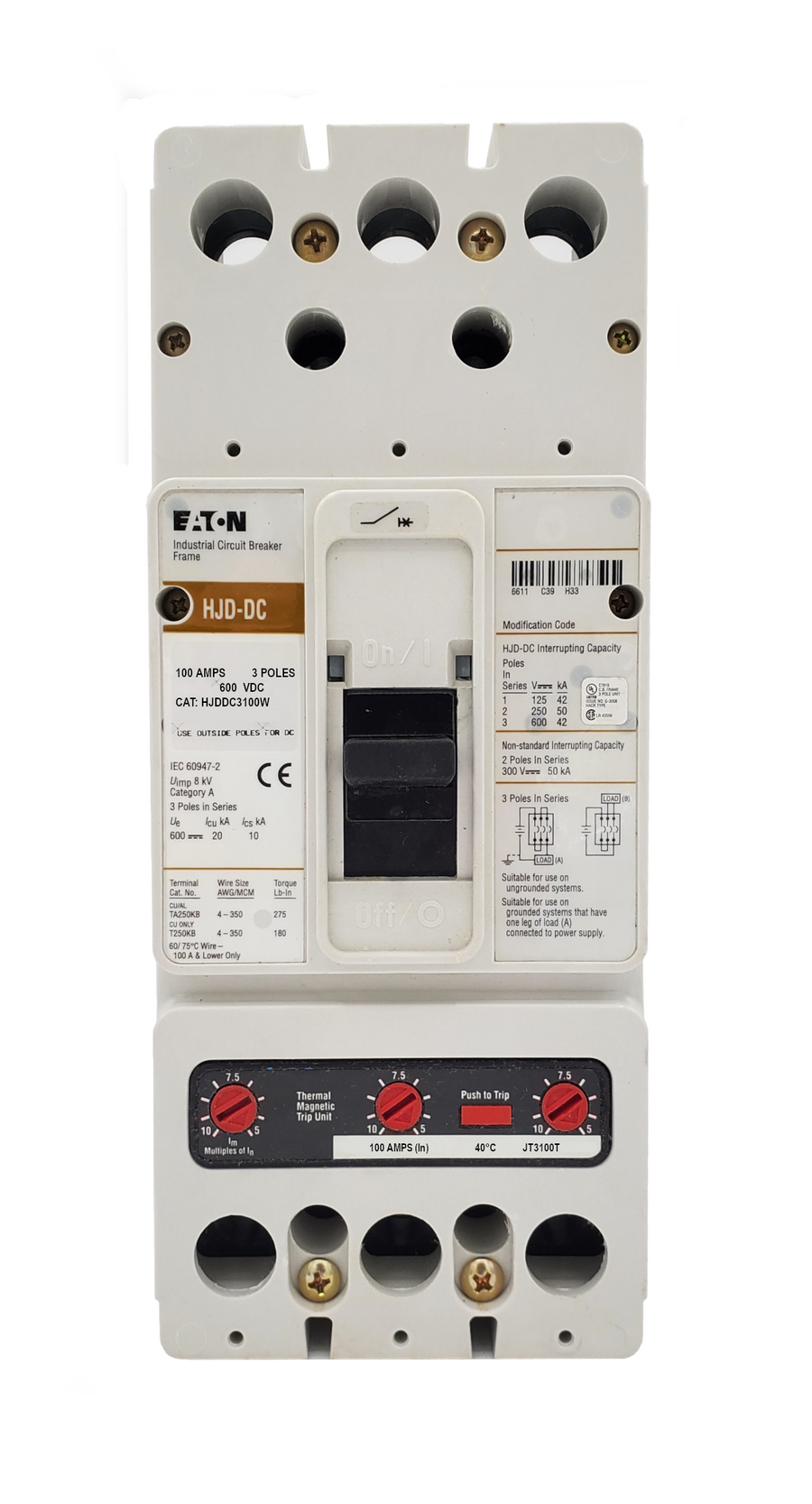

HJDDC Frame Style, Molded Case Circuit Breaker, High Interrupting Capacity, DC Rated, Thermal Magnetic Interchangeable Trip Unit, 100 Ampere at 40 Degree Celsius, 3 Pole, 600VDC @ 50/60HZ, Interrupting Ratings: 1 Pole in Series - 42 Kiloampere @ 125VDC, 2 Poles in Series - 50 Kiloampere @ 250VDC, 3 Poles in Series - 42 Kiloampere @ 600VDC, Without Terminals Standard
This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
Manufacturer | Eaton / Cutler Hammer |
---|---|
Warranty | One Year |
Connection | Bolt On |
Frame Type | J |
Amperage | 100 |
Poles | 3 |
Voltage Max | 600 (DC) |
Interrupting Capacity Rating | 1 Pole in Series - 42 Kiloampere @ 125VDC, 2 Poles in Series - 50 Kiloampere @ 250VDC, 3 Poles in Series - 42 Kiloampere @ 600VDC |
Trip Setting | 500-1000 |
Standard Lug Type | Without Terminals Standard |
