Specs are as follows:

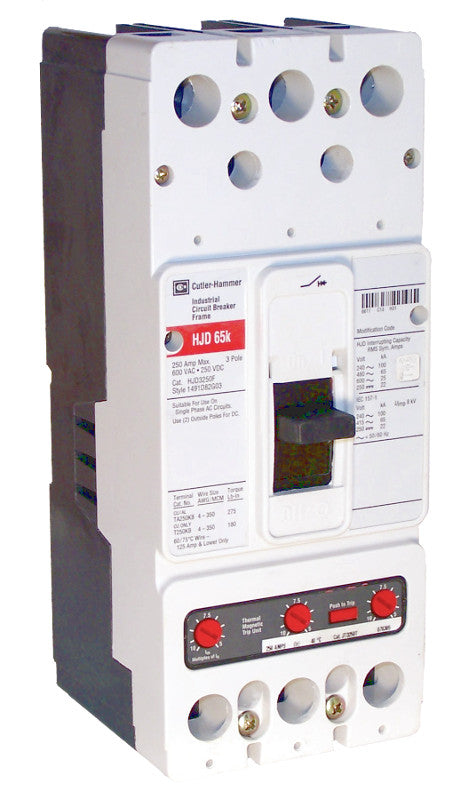

HJD Frame Style, Molded Case Circuit Breaker, High Interrupting Capacity, Thermal Magnetic Interchangeable Trip Unit, 225 Ampere at 40 Degree Celsius, 3 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 100 Kiloampere @ 240VAC, 65 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 22 Kiloampere @ 250VDC
Look under Parts & Accessories or follow the links below to order accessories used to create additional configurations for this unit.
1. Optional Auxiliary Switches
2. Optional Shunt Trips
3. Terminal/Lug Kit Installed:
4. Optional Undervoltage Releases (UVRs)
Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
|Manufacturer||Eaton / Cutler Hammer|
|Interrupting Capacity Rating||100 Kiloampere @ 240VAC, 65 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 22 Kiloampere @ 250VDC|
|Trip Setting||Adjustable 5-10 Times Continuous Ampere Rating|
|Standard Lug Type||Aluminum Line and Load End Terminals Standard|
