HFD63B070
Product Description
HFD Frame Style, Molded Case Circuit Breaker, High Interrupting Capacity, Thermal Magnetic Interchangeable Trip Unit, 70 Ampere at 40 Degree Celsius, 3 Pole, 240V AC, 480V AC, and 600V AC @ 50/60 HZ, 250V DC and 500V DC, Interrupting Ratings: 100 Kiloampere @ 240V AC, 65 Kiloampere @ 480V AC, 25 Kiloampere @ 600V AC, 30 Kiloampere @ 250V DC, 18 Kiloampere @ 500V DC, Line and Load End Terminals Standard.

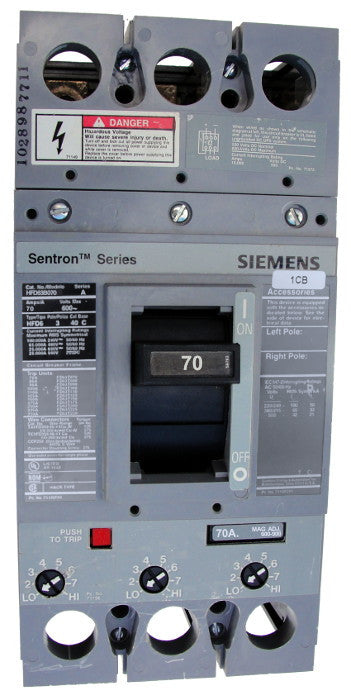

This product image represents a base model and is for identification purposes only. Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
Specifications
| Manufacturer | Siemens / ITE |
|---|---|
| Warranty | One Year |
| Connection | Bolt On |
| Frame Type | F |
| Amperage | 70 |
| Poles | 3 |
| Voltage Max | 600 |
| Interrupting Capacity Rating | 100 Kiloampere @ 240V AC, 65 Kiloampere @ 480V AC, 25 Kiloampere @ 600V AC, 30 Kiloampere @ 250V DC, 18 Kiloampere @ 500V DC |
| Trip Setting | 600-900 |
| Standard Lug Type | Line and Load Standard |
New Surplus
Certified Reconditioned
Qty in Stock: 1
