Specs are as follows:

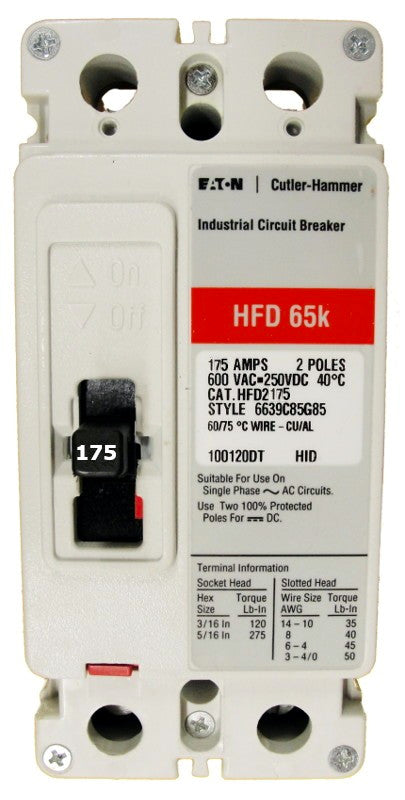

HFD Frame Style, Molded Case Circuit Breaker, Thermal Magnetic Non-interchangeable Trip Unit, High Interrupting Capacity, 175 Ampere at 40 Degree Celsius, 2 Pole, 600VAC @ 50/60HZ, Interrupting Ratings: 100 Kiloampere @ 240VAC, 65 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 22 Kiloampere @ 250VDC, Line and Load End Terminals Standard.
Follow the links below to order accessories used to create additional configurations for this unit.
1. Optional Auxiliary Switches
2. Optional Shunt Trips
3. Optional Terminal/Lug Kits
4. Optional Undervoltage Releases (UVRs)
Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
|Manufacturer||Eaton / Cutler Hammer|
|Interrupting Capacity Rating||100 Kiloampere @ 240VAC, 65 Kiloampere @ 480VAC, 25 Kiloampere @ 600VAC, 22 Kiloampere @ 250VDC|
|Standard Lug Type||Line and Load|
