In stock. Ships within one business day. Reconditioned by AVO certified technicians! Test reports included. Backed by a full one year warranty. Specs are as follows:

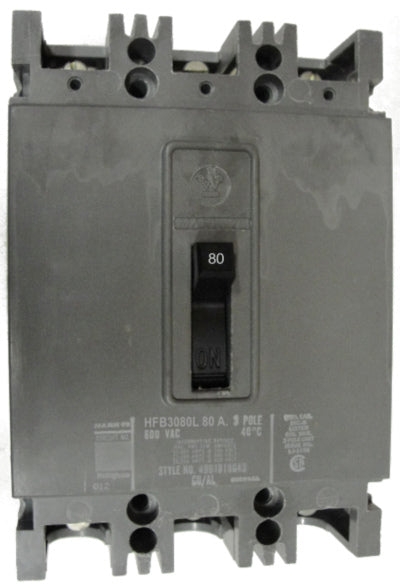

HFB Frame Style, Molded Case Circuit Breaker, Thermal Magnetic Non-interchangeable Trip Unit, 80 Ampere at 40 Degree Celsius, 3 Pole, 600 VAC @ 50/60HZ, Interrupting Ratings: 65 Kiloampere @ 240 VAC, 25 Kiloampere @ 480 VAC, 18 Kiloampere @ 600 VAC, 20 Kiloampere @ 250 VDC, Line and Load End Terminals Standard.Look under Parts & Accessories or follow the links below to order accessories used to create additional configurations for this unit.
1. Auxiliary Switches
2. Shunt Trips
3. Undervoltage Releases (UVRs)
4. Terminal/Lug Kits
Are you purchasing accessories and your breaker in the same order? We will install your accessories to meet your specific configuration needs at NO ADDITIONAL COST! Just provide the necessary information in the order comment box during checkout.
|Manufacturer||Westinghouse / Cutler-Hammer|
|Interrupting Capacity Rating||65 Kiloampere @ 240 VAC, 25 Kiloampere @ 480 VAC, 18 Kiloampere @ 600 VAC, 20 Kiloampere @ 250 VDC|
|Standard Lug Type||Line and Load|
