This product image represents a base model and is for identification purposes only.

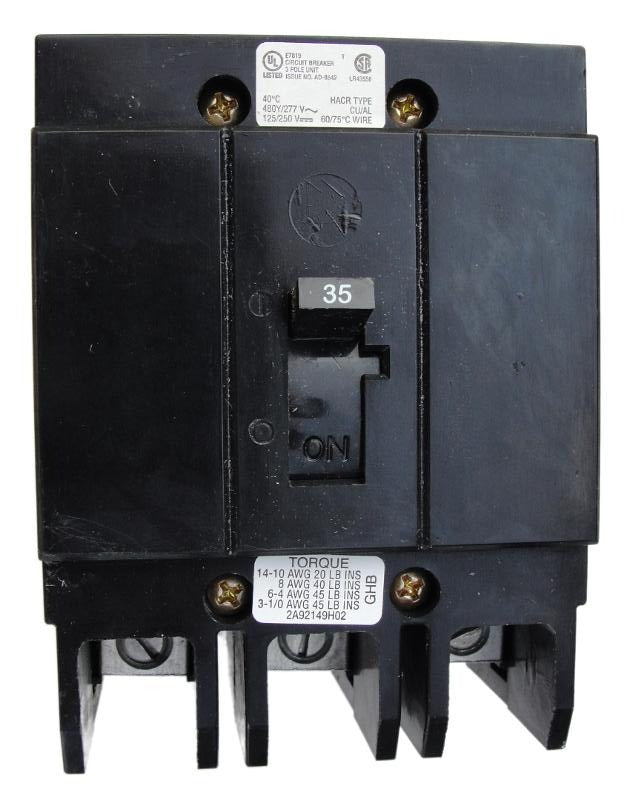

G Frame Style, Molded Case Circuit Breaker, Thermal Magnetic Non-interchangeable Trip Unit, 35 Ampere at 40 Degree Celsius, 3 Pole, 240 VAC, 480Y/277 VAC, 125/250 VDC, Interrupting Ratings: 65 Kiloampere @ 240VAC, 14 Kiloampere @ 480Y/277 VAC, 14 Kiloampere @ 125/250 VDC, Load End Terminals Standard.
Product Description
G Frame Style, Molded Case Circuit Breaker, Thermal Magnetic Non-interchangeable Trip Unit, 35 Ampere at 40 Degree Celsius, 3 Pole, 240 VAC, 480Y/277 VAC, 125/250 VDC, Interrupting Ratings: 65 Kiloampere @ 240VAC, 14 Kiloampere @ 480Y/277 VAC, 14 Kiloampere @ 125/250 VDC, Load End Terminals Standard.
Specifications
| Manufacturer | Eaton / Cutler Hammer |
|---|---|
| Warranty | One Year |
| Connection | Bolt On |
| Frame Type | G |
| Amperage | 35 |
| Poles | 3 |
| Voltage Max | 480 |
| Interrupting Capacity Rating | 65 Kiloampere @ 240VAC, 14 Kiloampere @ 480Y/277 VAC, 14 Kiloampere @ 125/250 VDC |
| Standard Lug Type | Load |
